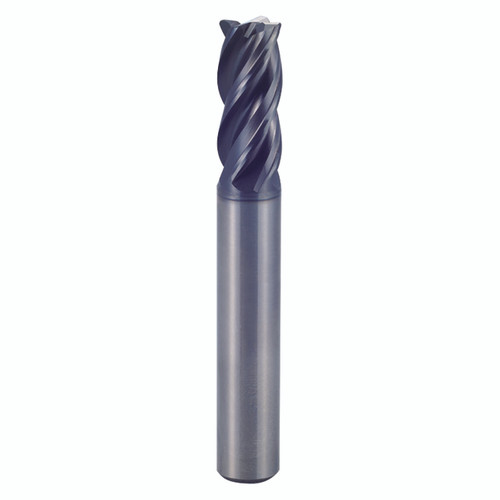

YG1 UGMF70963 | 0.2188" Diameter x 0.2500" Shank x 0.4375" LOC x 2.5000" OAL x 0.0100" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

$26.14
SKU:
25054780
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberUGMF70963
Diameter (Inch)7/32"
Diameter (Decimal Inch)0.2188"
Diameter (mm)5.56mm
Shank Diameter (Inch)1/4"
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Length of Cut (Inch)7/16"
Length of Cut (Decimal Inch)0.4375"
Length of Cut (mm)11.11mm
Overall Length (Inch)2-1/2"
Overall Length (Decimal Inch)2.5000"
Overall Length (mm)63.50mm
Corner Radius (Inch)1/100"
Corner Radius (Decimal Inch)0.0100"
Corner Radius (mm)0.25mm
Number of Flutes4
Helix AngleVariable
SeriesUGMF70
Shank StylePlain
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, K, S
