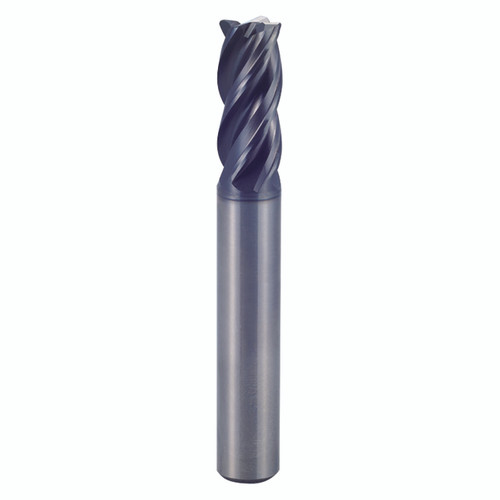

| Manufacturer Part Number | UGMF70S826 |
| Diameter (Inch) | 5/8" |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 3-1/4" |
| Length of Cut (Decimal Inch) | 3.2500" |
| Length of Cut (mm) | 82.55mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Corner Radius (Inch) | 1/11" |
| Corner Radius (Decimal Inch) | 0.0900" |
| Corner Radius (mm) | 2.29mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMF70 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
