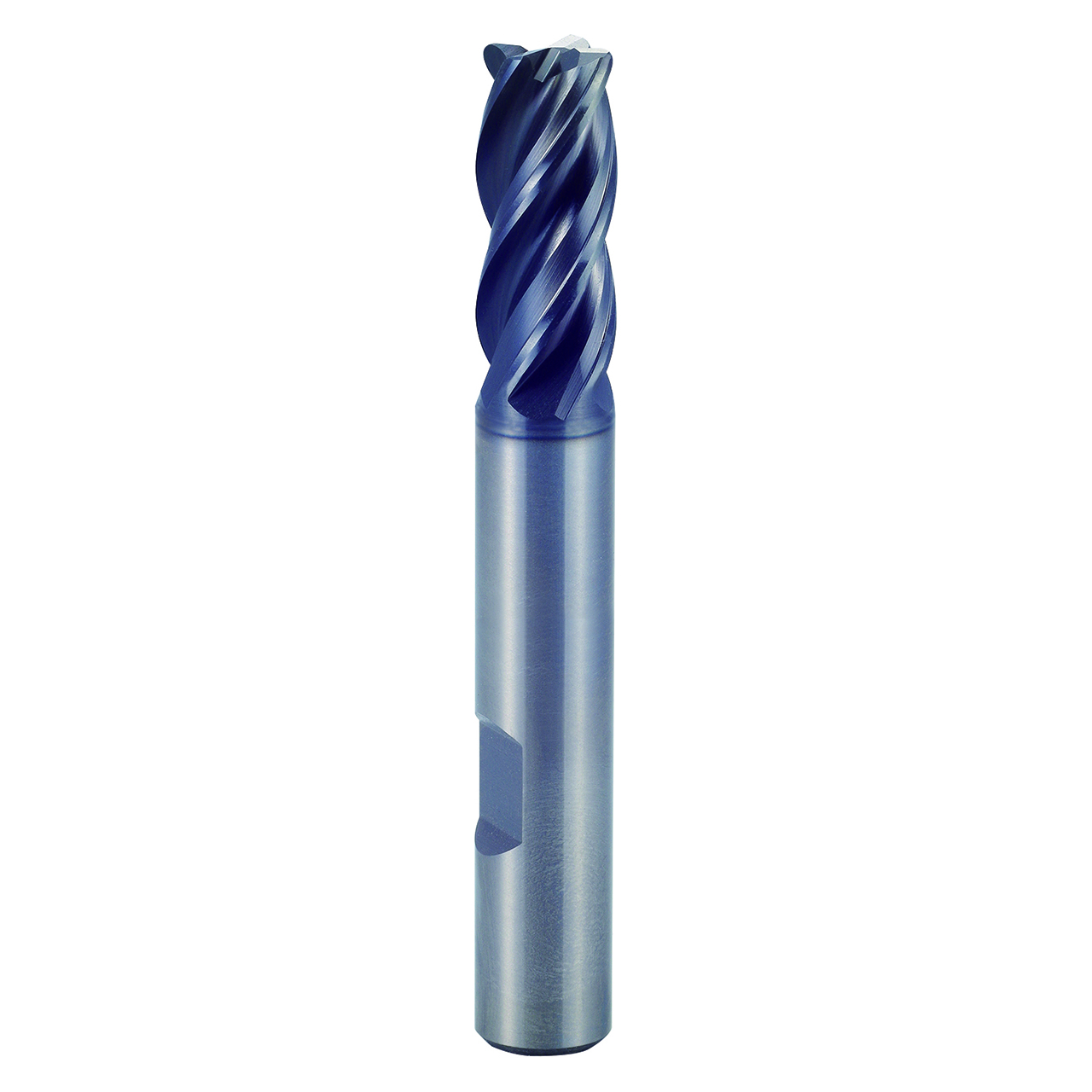

| Manufacturer Part Number | UGMF71S961 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 2-1/2" |
| Length of Cut (Decimal Inch) | 2.5000" |
| Length of Cut (mm) | 63.50mm |
| Overall Length (Inch) | 4-1/2" |
| Overall Length (Decimal Inch) | 4.5000" |
| Overall Length (mm) | 114.30mm |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMF71 |
| Shank Style | Flat |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
