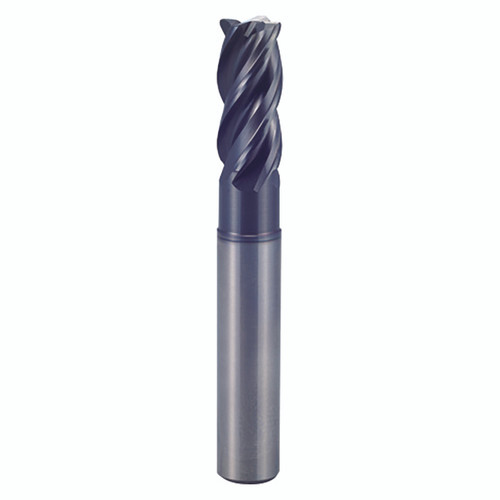

YG1 UGMF74948 | 0.5000" Diameter x 0.5000" Shank x 0.6250" LOC x 4.0000" OAL x 0.0900" Radius 4 Flute Y-Coated Carbide Corner Radius End Mill

Brand:

YG1

Diameter (Decimal Inch):

0.5000"

Diameter (Inch):

1/2"

Diameter (mm):

12.70mm

Shank Diameter (Decimal Inch):

0.5000"

Shank Diameter (Inch):

1/2"

Shank Diameter (mm):

12.70mm

Length of Cut (Decimal Inch):

0.6250"

Length of Cut (mm):

15.88mm

Overall Length (Decimal Inch):

4.0000"

Overall Length (Inch):

4"

Overall Length (mm):

101.60mm

Corner Radius (Decimal Inch):

0.0900"

Corner Radius (mm):

2.29mm

Number of Flutes:

4

Shank Style:

Plain

Finish/Coating:

Y-Coating

Material:

Carbide

Cut Type:

Center

Cutting Direction:

Right

interval quantity:

1

SKU:

25054911

UPC:

Weight:

0.37 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
