Product Specifications

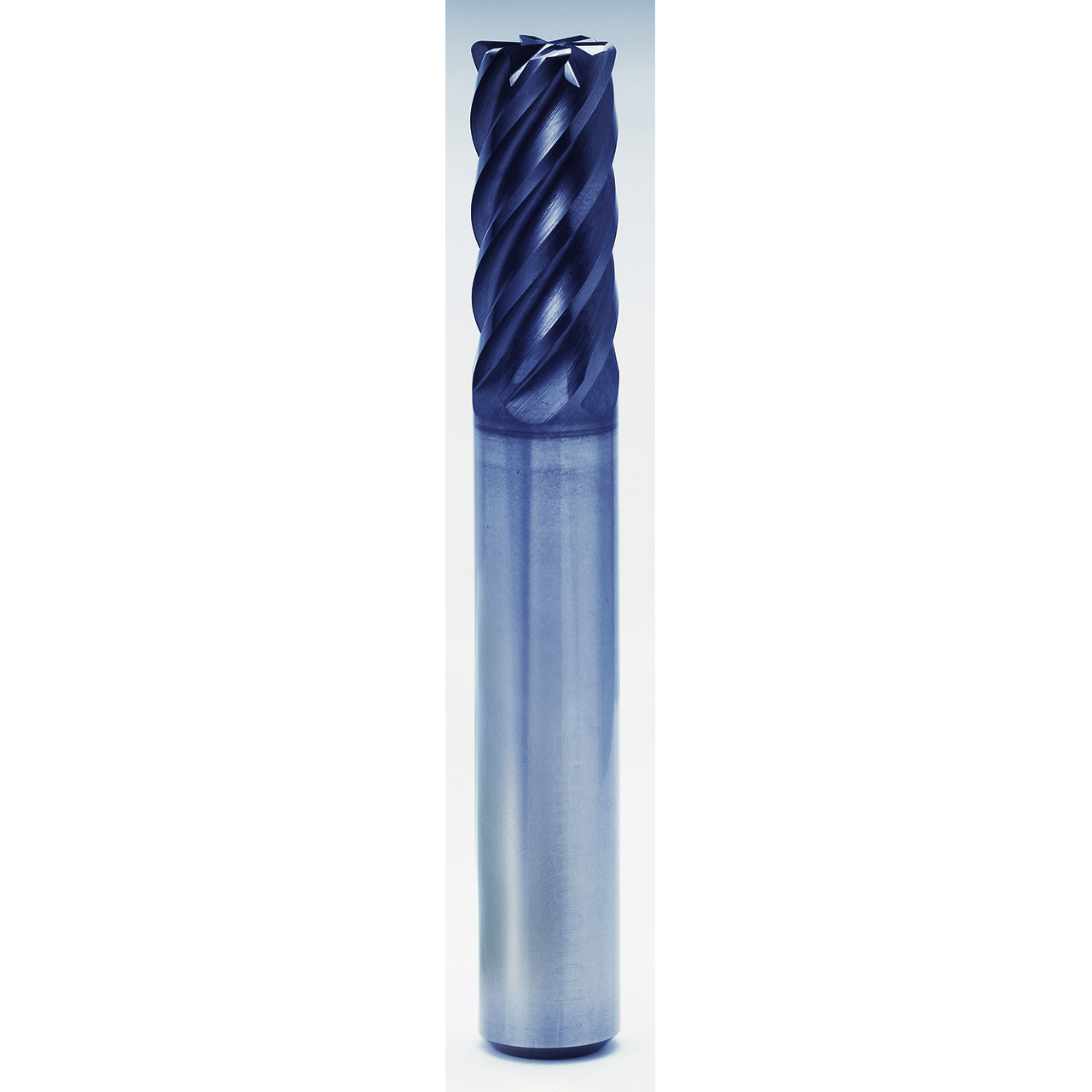

| Manufacturer Part Number | UGMG22906 |
| Diameter (Inch) | 5/16" |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 1-1/4" |
| Length of Cut (Decimal Inch) | 1.2500" |
| Length of Cut (mm) | 31.75mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Inch) | 2/67" |
| Corner Radius (Decimal Inch) | 0.0300" |
| Corner Radius (mm) | 0.76mm |
| Number of Flutes | 6 |
| Helix Angle | Variable |
| Series | UGMG22 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, S |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
6
Corner Radius (Inch):
2/67"
Corner Radius (Decimal Inch):
0.0300"
Corner Radius (mm):
0.76mm
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Y-Coated
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Cutting Direction:
Right
