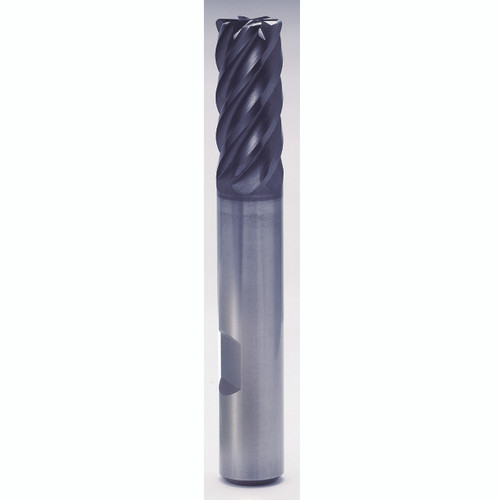

YG1 UGMG23957 | 0.5000" Diameter x 0.5000" Shank x 1.2500" LOC x 3.0000" OAL x 0.0300" Radius 6 Flute Y-Coated Carbide Corner Radius End Mill

$66.83
SKU:
25176385
Weight:
0.29 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberUGMG23957
Diameter (Inch)1/2"
Diameter (Decimal Inch)0.5000"
Diameter (mm)12.70mm
Shank Diameter (Inch)1/2"
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (mm)12.70mm
Length of Cut (Inch)1-1/4"
Length of Cut (Decimal Inch)1.2500"
Length of Cut (mm)31.80mm
Overall Length (Inch)3"
Overall Length (Decimal Inch)3.0000"
Overall Length (mm)76.20mm
Corner Radius (Inch)2/67"
Corner Radius (Decimal Inch)0.0300"
Corner Radius (mm)0.76mm
Number of Flutes6
Helix AngleVariable
SeriesUGMG23
Shank StyleFlat
CoatingY-Coated
MaterialCarbide
Cut TypeCenter
Cutting DirectionRight
Length TypeStandard Length
ApplicationP, M, S
