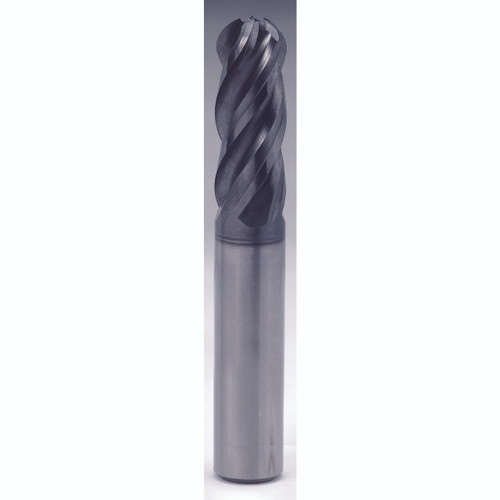

| Manufacturer Part Number | UGMG53028 |
| Diameter (Inch) | 7/16" |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (mm) | 69.85mm |
| Ball Nose Radius (Inch) | 7/32" |
| Ball Nose Radius (Decimal Inch) | 0.2188" |
| Ball Nose Radius (mm) | 5.56mm |
| Number of Flutes | 4 |
| Helix Angle | Variable |
| Series | UGMG53 |
| Shank Style | Plain |
| Coating | Y-Coated |
| Material | Carbide |
| Cut Type | Center |
| Cutting Direction | Right |
| Length Type | Standard Length |
| Application | P, M, K, S |
