Description

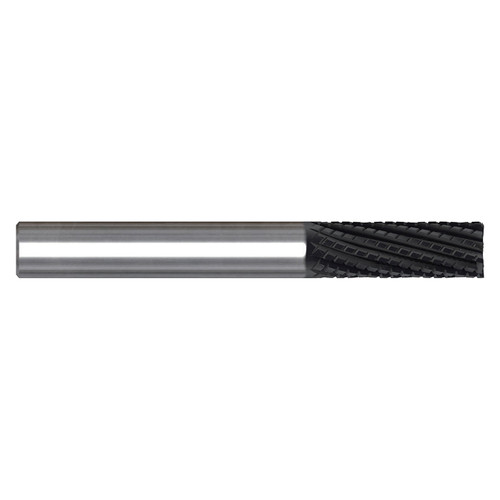

The YG1 URT5P1AP0250 diamond coated spiral router bit is made for high-performance machining of advanced composite materials such as CFRP and GFRP. This 1/4 diamond coated spiral router bit features a 0.250 diameter carbide spiral router bit construction, ensuring precision cutting and consistent results. Built from micro grain carbide spiral router bit material, it offers superior strength and wear resistance in demanding applications. The 8 flute carbide spiral router bit design enhances cutting efficiency and improves surface finish quality. With a 1/4 shank CNC spiral router bit configuration, it ensures compatibility with a wide range of CNC gantry systems and robotic end-effectors. The 3.0000" overall length supports extended reach while maintaining tool stability. A 1.0000" length of cut allows effective material removal in composite machining processes. The diamond coating reduces friction and extends tool life, making it suitable for high-speed operations. Its 15-degree helix angle ensures controlled chip evacuation and smooth cutting action. This diamond coated spiral router bit is ideal for precision milling operations. It is widely used in industries requiring accurate machining of fiber-reinforced materials. The robust construction ensures durability under continuous use. The YG1 URT5P1AP0250 enhances productivity while maintaining cutting precision. It supports efficient machining with minimal tool wear. This tool is a reliable solution for advanced CNC routing applications.
Product Features and Benefits
Diamond Coated Cutting Edge
The YG1 URT5P1AP0250 diamond coated spiral router bit improves wear resistance and cutting efficiency in composite materials.
8 Flute High-Performance Design
This 8 flute carbide spiral router bit enhances surface finish and provides smooth cutting performance.
Precision 0.250" Diameter Tooling
The 0.250 diameter carbide spiral router bit ensures accurate machining and consistent dimensional results.
Micro Grain Carbide Construction
The micro grain carbide spiral router bit offers durability and strength for long-lasting performance.
1/4" Shank Compatibility
This 1/4 shank CNC spiral router bit ensures secure fitment in CNC machines and robotic systems.
Product Specifications
| Manufacturer Part Number | URT5P1AP0250 |
| Mill Diameter (Inch) | 1/4" |
| Mill Diameter (Decimal Inch) | 0.2500" |
| Mill Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter(mm) | 6.35mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Number of Flutes | 8 |
| Series | URT5P1AP |
| Helix Angle | 15 Degree |
| Material | Micro Grain Carbide |
| Coating | Diamond |
| Shank Type | Plain |
| Application | CFRP,GFRP |
| Machine | CNC Gantry,Robot End-Effectors |
| Operation | Milling |
Frequently Asked Questions
What materials can the YG1 URT5P1AP0250 machine?
This diamond coated spiral router bit is ideal for machining CFRP and GFRP composite materials.
What is the diameter of this router bit?
The 1/4 diamond coated spiral router bit has a 0.250 diameter carbide spiral router bit size.
How many flutes does this tool have?
This 8 flute carbide spiral router bit provides efficient cutting and improved surface finish.
What is the shank size of this router bit?
The 1/4 shank CNC spiral router bit ensures compatibility with standard CNC tool holders.
What is the benefit of diamond coating?
The diamond coated spiral router bit increases tool life and reduces wear during high-speed machining.
