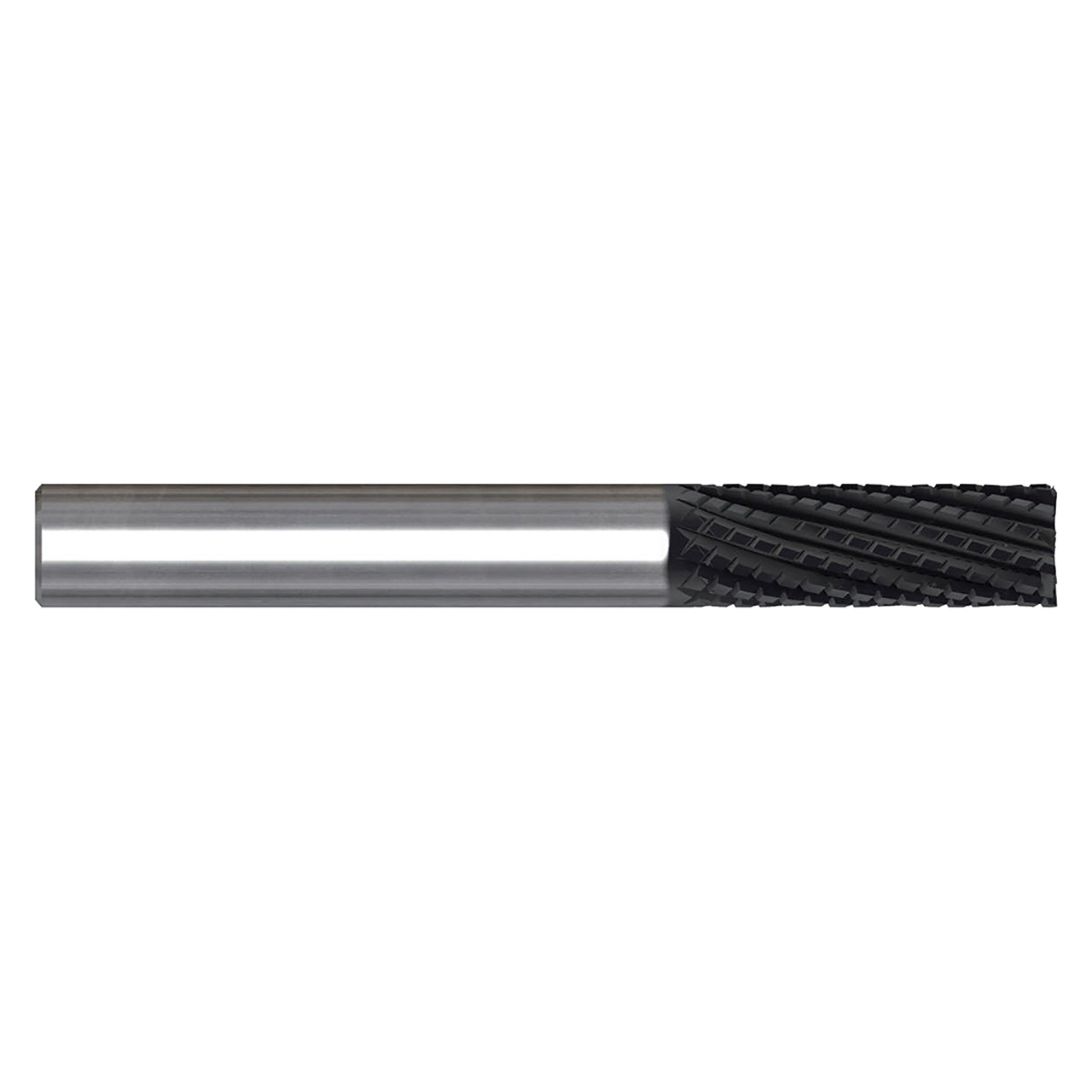

High performance machining of CFRP, can be used as rougher or finisher YG-1 special CVD coating for extended tool life and better abrasion resistance.
| Manufacturer Part Number | URT5P1AG0250 |
| Mill Diameter (Inch) | 1/4" |
| Mill Diameter (Decimal Inch) | 0.2500" |
| Mill Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter(mm) | 6.35mm |
| Length of Cut (Inch) | 1" |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Number of Flutes | Multi Flute |
| Series | URT5P1AG |
| Helix Angle | 15 Degree |
| Material | Micro Grain Carbide |
| Coating | Diamond |
| Shank Type | Plain |
| Application | CFRP,GFRP |
| Machine | CNC Gantry,Robot End-Effectors |
| Operation | Milling |
| End Type | Burr End |
