| Manufacturer Part Number | VC032 |
| Body Diameter 1 (Inch) | 17/18" |
| Body Diameter 1 (Decimal Inch) | 0.9449" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Inch) | 1-20/77" |
| Body Diameter 2 (Decimal Inch) | 1.2598" |
| Body Diameter 2 (mm) | 32.00mm |
| Connection Work Side (Decimal Inch) | 0.500" |
| Connection Work Side (Inch) | 1/2" |
| Connect Work Side (mm) | 12.70mm |
| Gage Length (Decimal Inch) | 3.150" |
| LPR (Inch) | 3-3/20" |
| LPR (mm) | 8.00mm |
| Overall Length (Inch) | 7-3/20" |
| Overall Length (Decimal Inch) | 7.1496" |
| Overall Length (mm) | 181.60mm |
| Body Length (Inch) | 2-2/5" |
| Body Length (Decimal Inch) | 2.3996" |
| Body Length (mm) | 60.95mm |
| Clamping Length (Inch) | 1-1/2" |
| Clamping Length (Decimal Inch) | 1.4961" |
| Clamping Length (mm) | 38.00mm |
| Connection Bore Depth (Inch) | 1-13/14" |
| Connection Bore Depth (Decimal Inch) | 1.9991" |
| Connection Bore Depth (mm) | 49.00mm |
| Thread Diameter Size | M10x1.00mm |
| Connection Retention Knob Thread Size | UNC1-8 |
| Radial Loction (Inch) | 13/25" |
| Radial Location (mm) | 13.20mm |
| Radial Location (Decimal Inch) | 0.5197" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

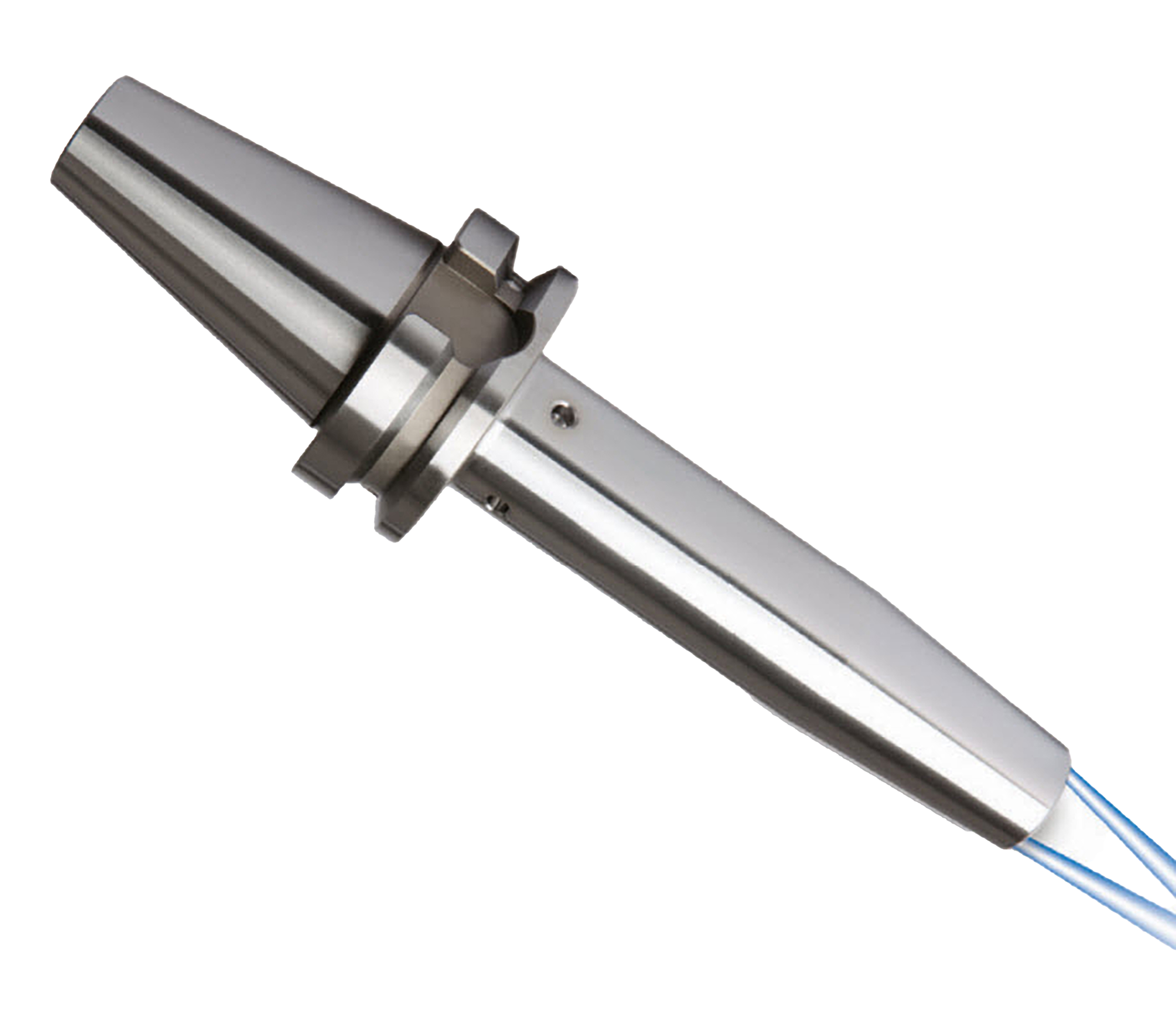

| Product Type | Shrink Fit Holder |
