Product Specifications
| Manufacturer Part Number | VG032 |
| Body Diameter 1 (Inch) | 1-3/10" |
| Body Diameter 1 (Decimal Inch) | 1.2992" |
| Body Diameter 1 (mm) | 33.00mm |
| Body Diameter 2 (Inch) | 1-17/26" |
| Body Diameter 2 (Decimal Inch) | 1.6535" |
| Body Diameter 2 (mm) | 42.00mm |
| Connection Work Side (Decimal Inch) | 0.750" |
| Connection Work Side (Inch) | 3/4" |
| Connect Work Side (mm) | 19.05mm |
| Gage Length (Decimal Inch) | 3.540" |
| LPR (Inch) | 3-25/46" |
| LPR (mm) | 9.00mm |
| Overall Length (Inch) | 5-22/49" |
| Overall Length (Decimal Inch) | 5.4488" |
| Overall Length (mm) | 138.40mm |
| Body Length (Inch) | 2-21/31" |
| Body Length (Decimal Inch) | 2.6772" |
| Body Length (mm) | 68.00mm |
| Clamping Length (Inch) | 1-35/57" |
| Clamping Length (Decimal Inch) | 1.6142" |
| Clamping Length (mm) | 41.00mm |
| Connection Bore Depth (Inch) | 2-2/23" |
| Connection Bore Depth (Decimal Inch) | 2.0666" |
| Connection Bore Depth (mm) | 53.00mm |
| Thread Diameter Size | M16x1.00mm |
| Connection Retention Knob Thread Size | M12x1.75 |
| Radial Loction (Inch) | 59/81" |
| Radial Location (mm) | 18.50mm |
| Radial Location (Decimal Inch) | 0.7283" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

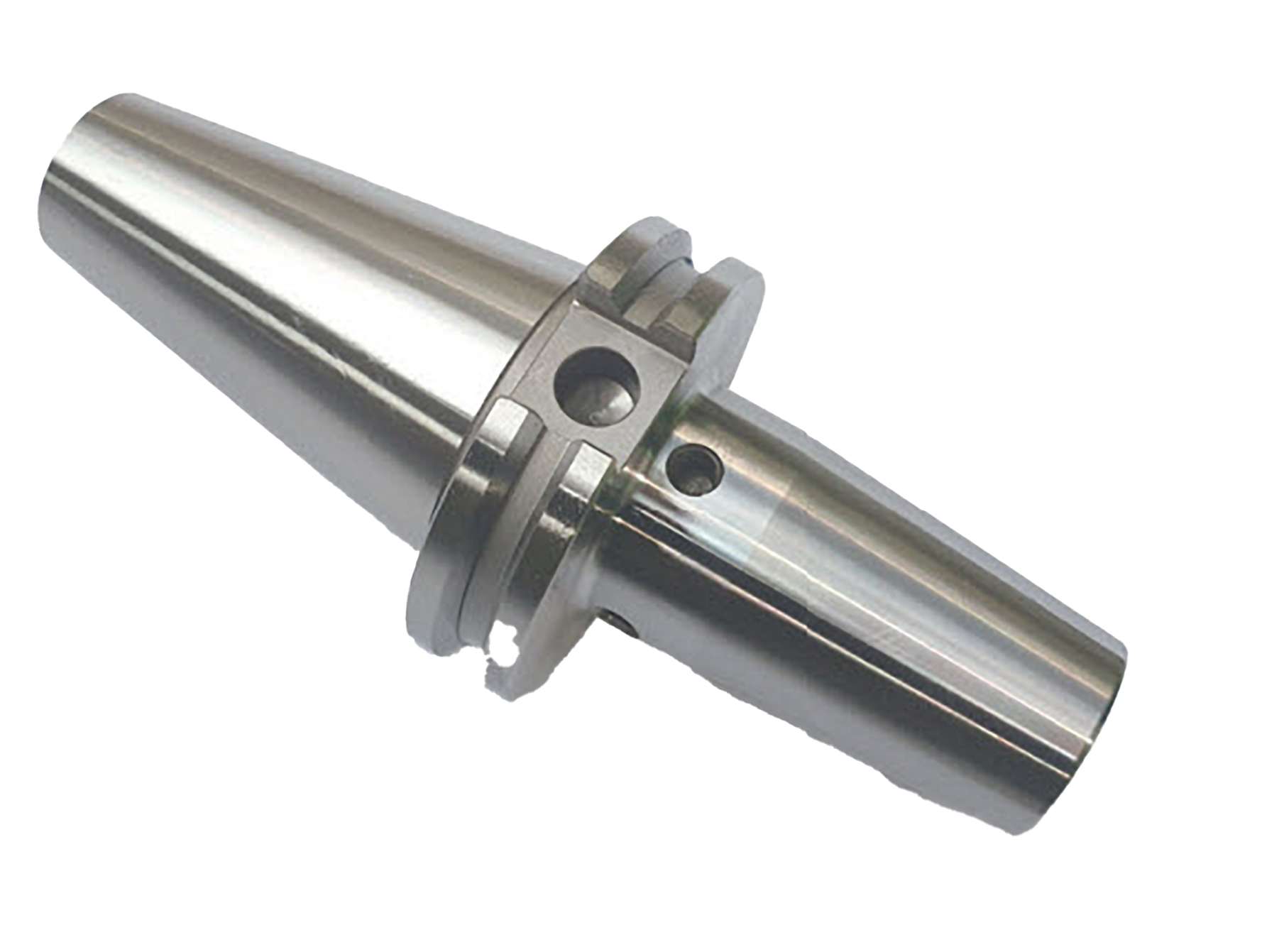

| Product Type | Shrink Fit Holder |
