| Manufacturer Part Number | VH040 |
| Taper Type | BT40 |
| Connection Diameter Work Side (Decimal Inch) | 3/4" |
| Connection Diameter Work Side (Decimal Inch) | 0.750" |
| Connection Diameter Work Side (mm) | 19.05mm |
| Body Diameter1 (Decimal Inch) | 1.299" |
| Body Diameter1 (mm) | 33.00mm |
| Body Diameter2 (Decimal Inch) | 1.654" |
| Body Diameter2 (mm) | 42.00mm |
| Projection Length (Decimal Inch) | 3.540" |
| Projection Length (mm) | 90.00mm |
| Functional Length (Decimal Inch) | 1.496" - 1.890" |
| Overall Length (Decimal Inch) | 6.118" |
| Overall Length (mm) | 155.40mm |
| Body Length (Decimal Inch) | 2.480" |
| Body Length (mm) | 63.00mm |
| Clamping Length (Decimal Inch) | 1.654" |
| Clamping Length (mm) | 42.00mm |
| Connection Bore Depth (Decimal Inch) | 2.126" |
| Connection Bore Depth (mm) | 54.00mm |
| Thread diameter size | M16 x 1.00mm |
| Body Half Taper Angle (Degree) | 4.50 Degree |
| Radial Location (Decimal Inch) | 0.695" |
| Radial Location (mm) | 17.65mm |
| Connection Retention Knob Thread Size | M16x2.0 |
| Measurement | Inch |
| Taper Accuracy | AT3 |
| Maximum Speed (RPM) | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Spindle Taper Type | JIS B6339/MAS 403BT |

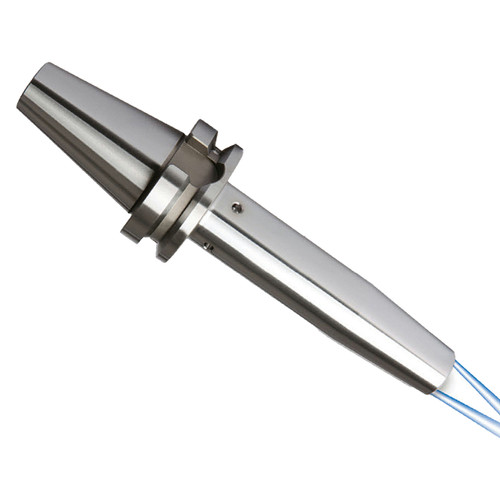

| Product Type | Shrink-Fit Tool Holder |
