| Manufacturer Part Number | VQ030J |
| Body Diameter 1 (Inch) | 60/71" |
| Body Diameter 1 (Decimal Inch) | 0.8450" |
| Body Diameter 1 (mm) | 24.00mm |
| Body Diameter 2 (Inch) | 1-20/77" |
| Body Diameter 2 (Decimal Inch) | 1.2598" |
| Body Diameter 2 (mm) | 32.00mm |
| Connection Work Side (Decimal Inch) | 0.375" |
| Connection Work Side (Inch) | 3/8" |
| Connect Work Side (mm) | 9.53mm |
| Gage Length (Decimal Inch) | 6.300" |
| LPR (Inch) | 6-3/10" |
| LPR (mm) | 16.00mm |
| Overall Length (Inch) | 7-52/93" |
| Overall Length (Decimal Inch) | 7.5591" |
| Overall Length (mm) | 192.00mm |
| Body Length (Inch) | 5-8/29" |
| Body Length (Decimal Inch) | 5.2756" |
| Body Length (mm) | 134.00mm |
| Clamping Length (Inch) | 1-6/25" |
| Clamping Length (Decimal Inch) | 1.2402" |
| Clamping Length (mm) | 31.50mm |
| Connection Bore Depth (Inch) | 1-62/87" |
| Connection Bore Depth (Decimal Inch) | 1.7226" |
| Connection Bore Depth (mm) | 43.50mm |
| Thread Diameter Size | M8x1.00mm |
| Radial Loction (Inch) | 1/2" |
| Radial Location (mm) | 12.65mm |
| Radial Location (Decimal Inch) | 0.4980" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

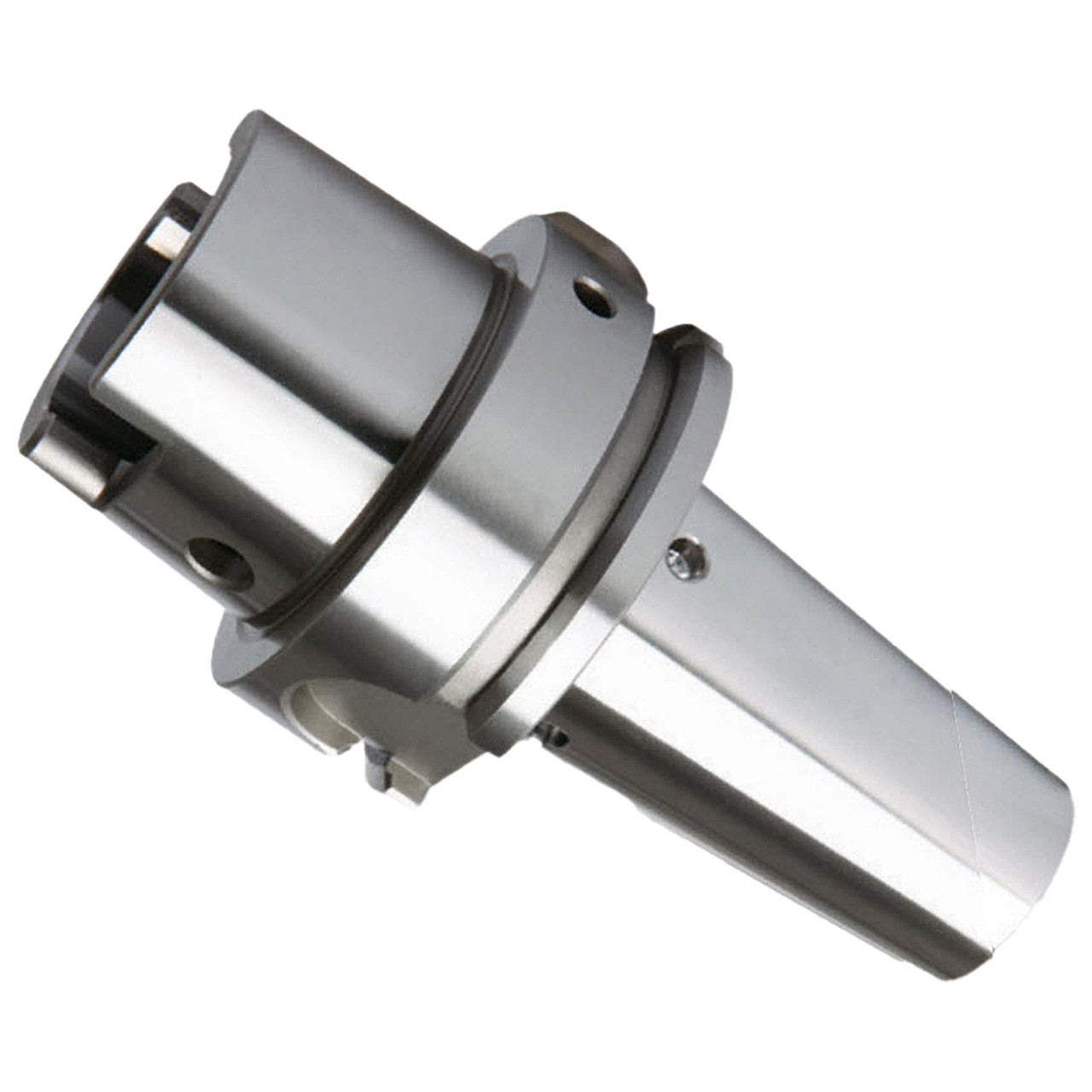

| Product Type | Shrink Fit Holder |
