| Manufacturer Part Number | VQ046J |
| Body Diameter 1 (Inch) | 1-71/97" |
| Body Diameter 1 (Decimal Inch) | 1.7320" |
| Body Diameter 1 (mm) | 44.00mm |
| Body Diameter 2 (Inch) | 2-2/23" |
| Body Diameter 2 (Decimal Inch) | 2.0866" |
| Body Diameter 2 (mm) | 53.00mm |
| Connection Work Side (Decimal Inch) | 1.000" |
| Connection Work Side (Inch) | 1" |
| Connect Work Side (mm) | 25.40mm |
| Gage Length (Decimal Inch) | 4.530" |
| LPR (Inch) | 4-48/91" |
| LPR (mm) | 115.00mm |
| Overall Length (Inch) | 5-63/80" |
| Overall Length (Decimal Inch) | 5.7874" |
| Overall Length (mm) | 147.00mm |
| Body Length (Inch) | 3-1/2" |
| Body Length (Decimal Inch) | 3.5039" |
| Body Length (mm) | 89.00mm |
| Clamping Length (Inch) | 1-8/9" |
| Clamping Length (Decimal Inch) | 1.8898" |
| Clamping Length (mm) | 48.00mm |
| Connection Bore Depth (Inch) | 2-25/69" |
| Connection Bore Depth (Decimal Inch) | 2.3222" |
| Connection Bore Depth (mm) | 60.00mm |
| Thread Diameter Size | M16x1.00mm |
| Radial Loction (Inch) | 38/43" |
| Radial Location (mm) | 22.45mm |
| Radial Location (Decimal Inch) | 0.8839" |
| RPM | 25000 RPM |
| Taper Accuracy | AT3 |
| Body Half Taper Angle (Degree) | 4.5 Degree |

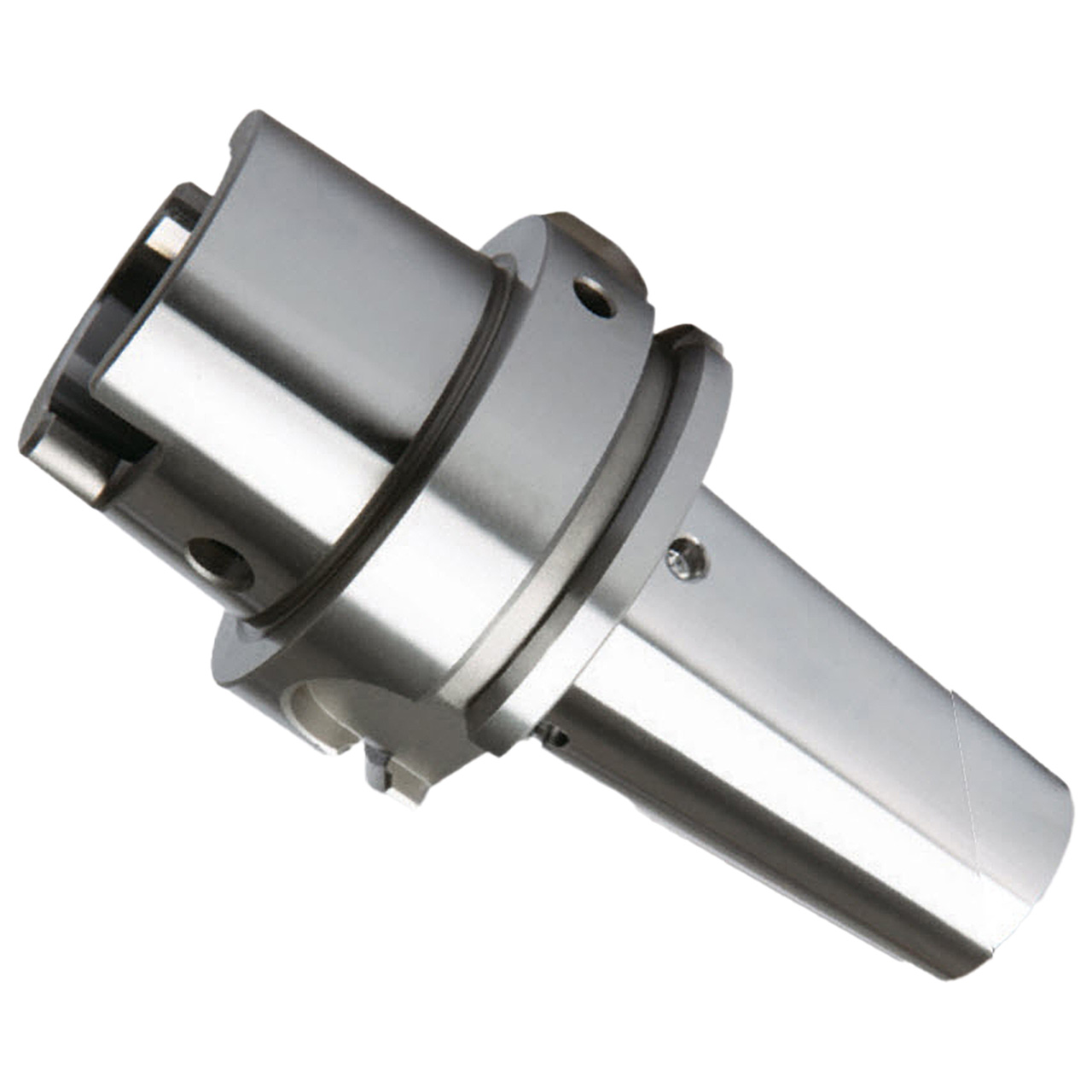

| Product Type | Shrink Fit Holder |
