| Manufacturer Part Number | VS011 |
| Body Diameter 1 (Inch) | 13/33" |
| Body Diameter 1 (Decimal Inch) | 0.3940" |
| Body Diameter 1 (mm) | 10.01mm |
| Connection Machine Side (mm) | 12.70mm |
| Connection Work Side (Decimal Inch) | 0.188" |
| Connection Machine Side (Decimal Inch) | 0.5000" |
| Connection Machine Side (Inch) | 1/2" |
| Connection Work Side (Inch) | 0.188" |
| Connect Work Side (mm) | 4.78mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.3000" |
| Overall Length (mm) | 160.02mm |
| Clamping Length (Inch) | 43/91" |
| Clamping Length (Decimal Inch) | 0.4724" |
| Clamping Length (mm) | 12.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

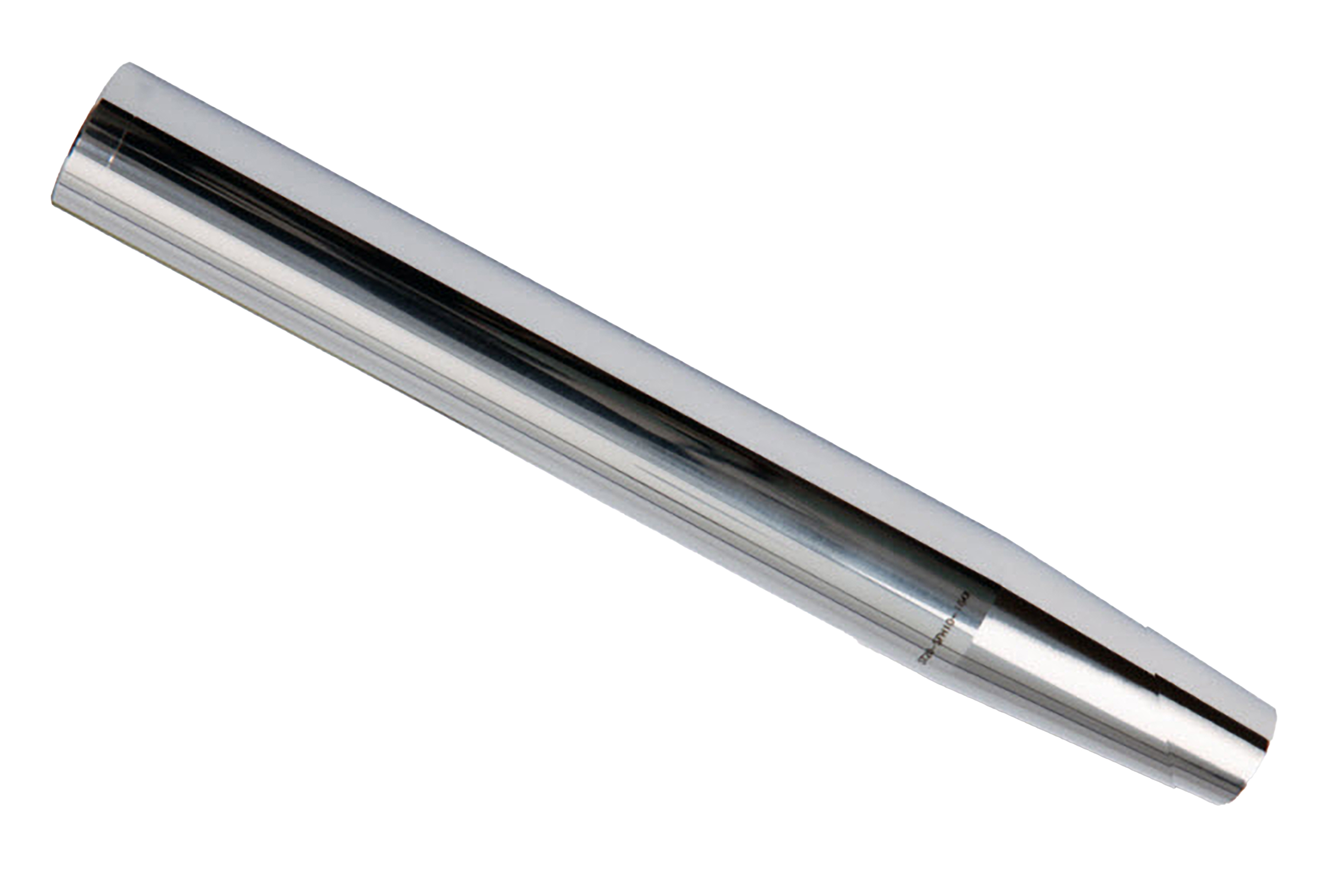

| Product Type | Shrink-Fit Extension |
