Product Specifications
| Manufacturer Part Number | VS012M |
| Body Diameter 1 (Inch) | 37/94" |
| Body Diameter 1 (Decimal Inch) | 0.3937" |
| Body Diameter 1 (mm) | 10.00mm |
| Connection Machine Side (mm) | 12.00mm |
| Connection Work Side (Decimal Inch) | 0.197" |
| Connection Machine Side (Decimal Inch) | 0.4724" |
| Connection Machine Side (Inch) | 43/91" |
| Connection Work Side (Inch) | 12/61" |
| Connect Work Side (mm) | 5.00mm |
| Overall Length (Inch) | 4-71/98" |
| Overall Length (Decimal Inch) | 4.7244" |
| Overall Length (mm) | 120.00mm |
| Body Length (Inch) | 1/2" |
| Body Length (Decimal Inch) | 0.5004" |
| Body Length (mm) | 12.71mm |
| Clamping Length (Inch) | 13/22" |
| Clamping Length (Decimal Inch) | 0.5906" |
| Clamping Length (mm) | 15.00mm |
| Connection Bore Depth (Inch) | 13/22" |
| Connection Bore Depth (Decimal Inch) | 0.5006" |
| Connection Bore Depth (mm) | 15.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

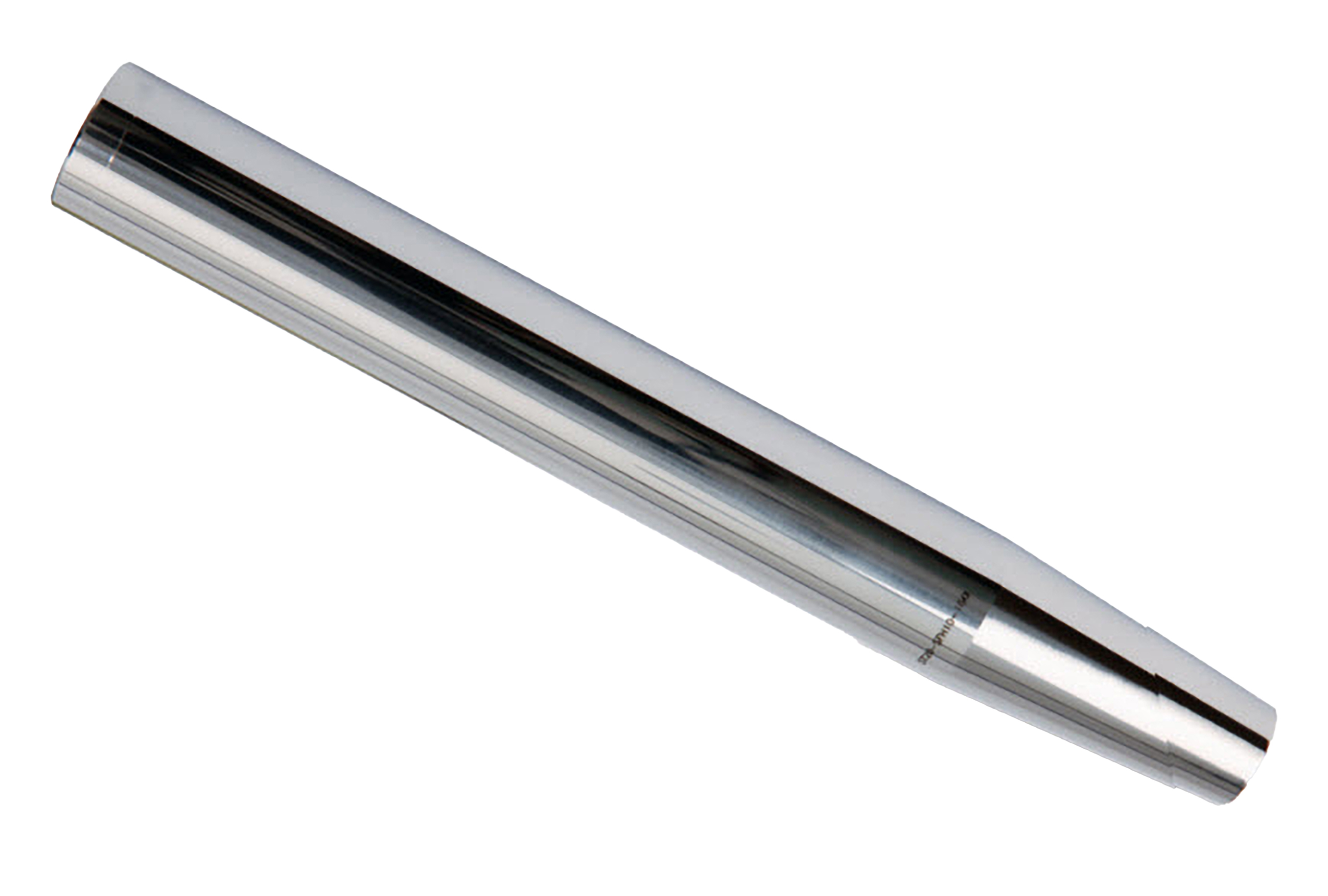

| Product Type | Shank Shrink Fit Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
4-71/98"
Overall Length (Decimal Inch):
4.7244"
Overall Length (mm):
120.00mm
interval quantity:
1
