Product Specifications

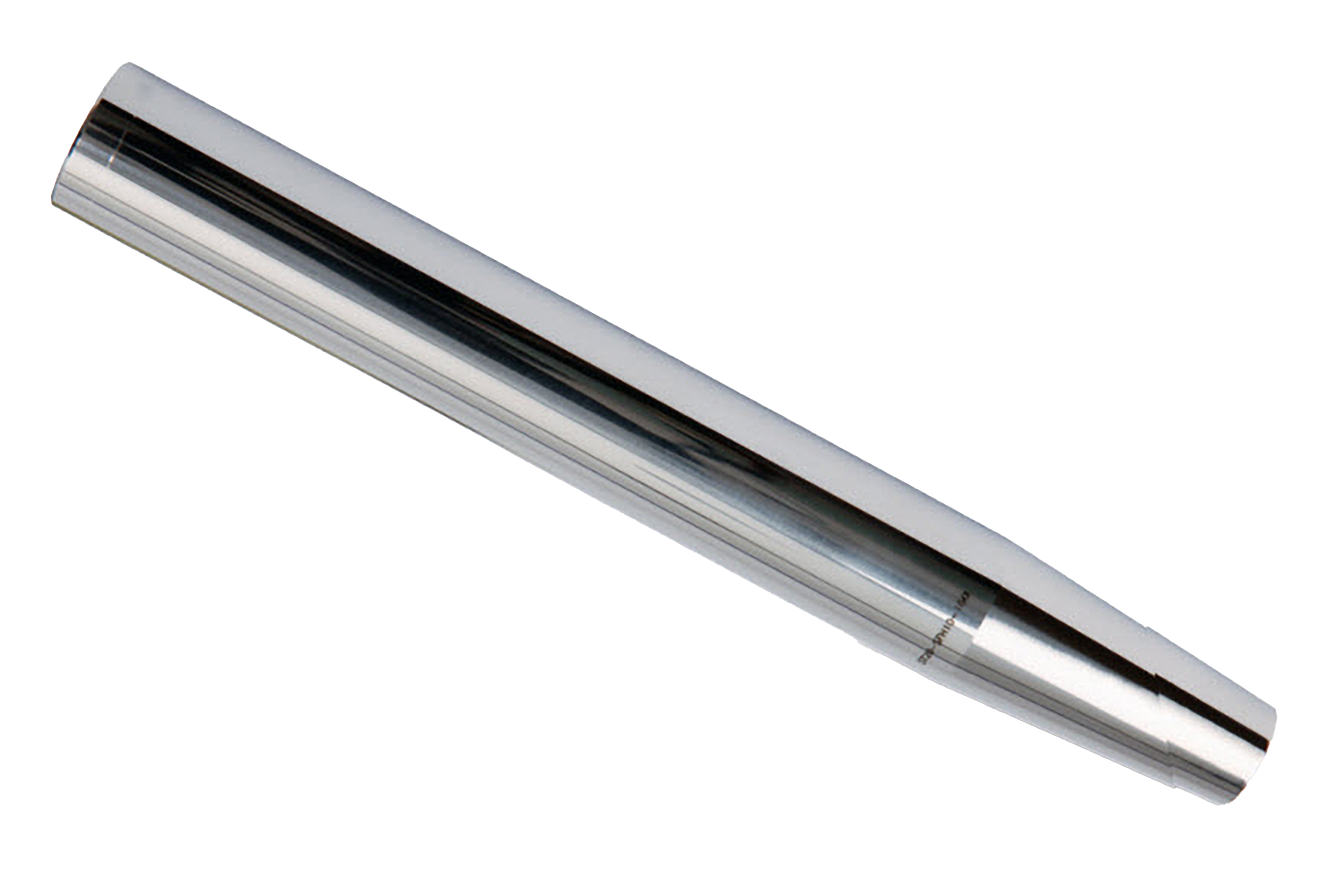

| Manufacturer Part Number | VS036M |
| Body Diameter 1 (Decimal Inch) | 0.6299" |
| Body Diameter 1 (mm) | 16.00mm |
| Connection Machine Side (mm) | 20.00mm |
| Connection Work Side (Decimal Inch) | 0.472" |
| Connection Machine Side (Decimal Inch) | 0.7874" |
| Connect Work Side (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 4.7244" |
| Overall Length (mm) | 120.00mm |
| Body Length (Inch) | 1" |
| Body Length (Decimal Inch) | 1.0004" |
| Body Length (mm) | 25.41mm |
| Clamping Length (Decimal Inch) | 1.4173" |
| Clamping Length (mm) | 36.00mm |
| Connection Bore Depth (Decimal Inch) | 1.8998" |
| Connection Bore Depth (mm) | 48.00mm |
| Thread Diameter Size | M10x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |
| Product Type | Shank Shrink Fit Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
interval quantity:
1
