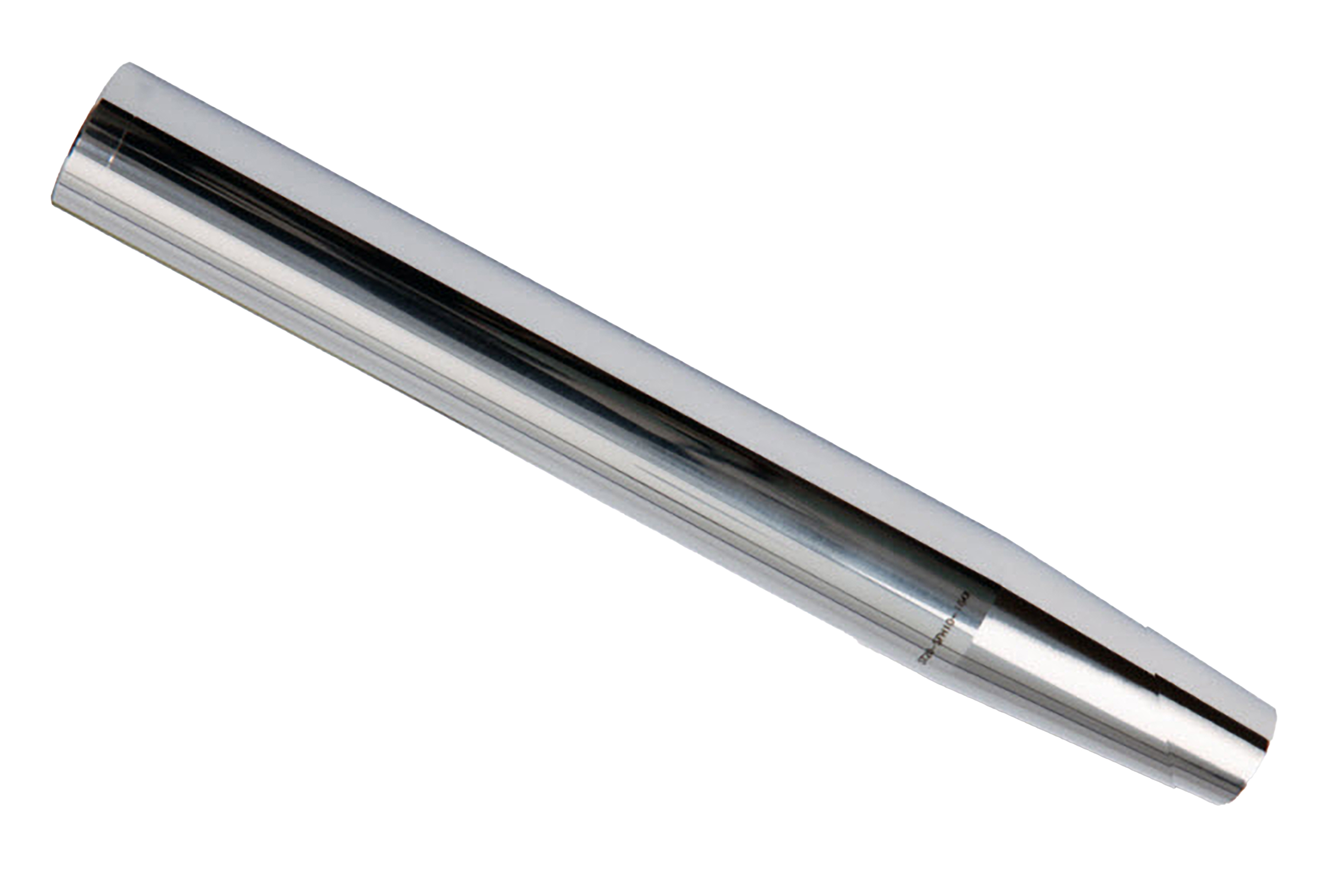

| Manufacturer Part Number | VS042 |
| Body Diameter 1 (Inch) | 27/49" |
| Body Diameter 1 (Decimal Inch) | 0.5510" |
| Body Diameter 1 (mm) | 14.00mm |
| Connection Machine Side (mm) | 25.40mm |
| Connection Work Side (Decimal Inch) | 0.250" |
| Connection Machine Side (Decimal Inch) | 1.0000" |
| Connection Machine Side (Inch) | 1" |
| Connection Work Side (Inch) | 0.250" |
| Connect Work Side (mm) | 6.35mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.3000" |
| Overall Length (mm) | 160.02mm |
| Clamping Length (Inch) | 1-2/85" |
| Clamping Length (Decimal Inch) | 1.0236" |
| Clamping Length (mm) | 26.00mm |
| Connection Bore Depth (Inch) | 1-5/12" |
| Connection Bore Depth (Decimal Inch) | 1.4773" |
| Connection Bore Depth (mm) | 36.00mm |
| Thread Diameter Size | M5x0.80mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |
| Product Type | Shrink-Fit Extension |
