Product Specifications
| Manufacturer Part Number | VS043 |
| Body Diameter 1 (Inch) | 27/49" |
| Body Diameter 1 (Decimal Inch) | 0.5510" |
| Body Diameter 1 (mm) | 14.00mm |
| Connection Machine Side (mm) | 25.40mm |
| Connection Work Side (Decimal Inch) | 0.313" |
| Connection Machine Side (Decimal Inch) | 1.0000" |
| Connection Machine Side (Inch) | 1" |
| Connection Work Side (Inch) | 0.313" |
| Connect Work Side (mm) | 7.95mm |
| Overall Length (Inch) | 6-3/10" |
| Overall Length (Decimal Inch) | 6.3000" |
| Overall Length (mm) | 160.02mm |
| Clamping Length (Inch) | 1-2/85" |
| Clamping Length (Decimal Inch) | 1.0236" |
| Clamping Length (mm) | 26.00mm |
| Connection Bore Depth (Inch) | 1-5/12" |
| Connection Bore Depth (Decimal Inch) | 1.4773" |
| Connection Bore Depth (mm) | 36.00mm |
| Thread Diameter Size | M6x1.00mm |
| Body Half Taper Angle (Degree) | 4.5 Degree |

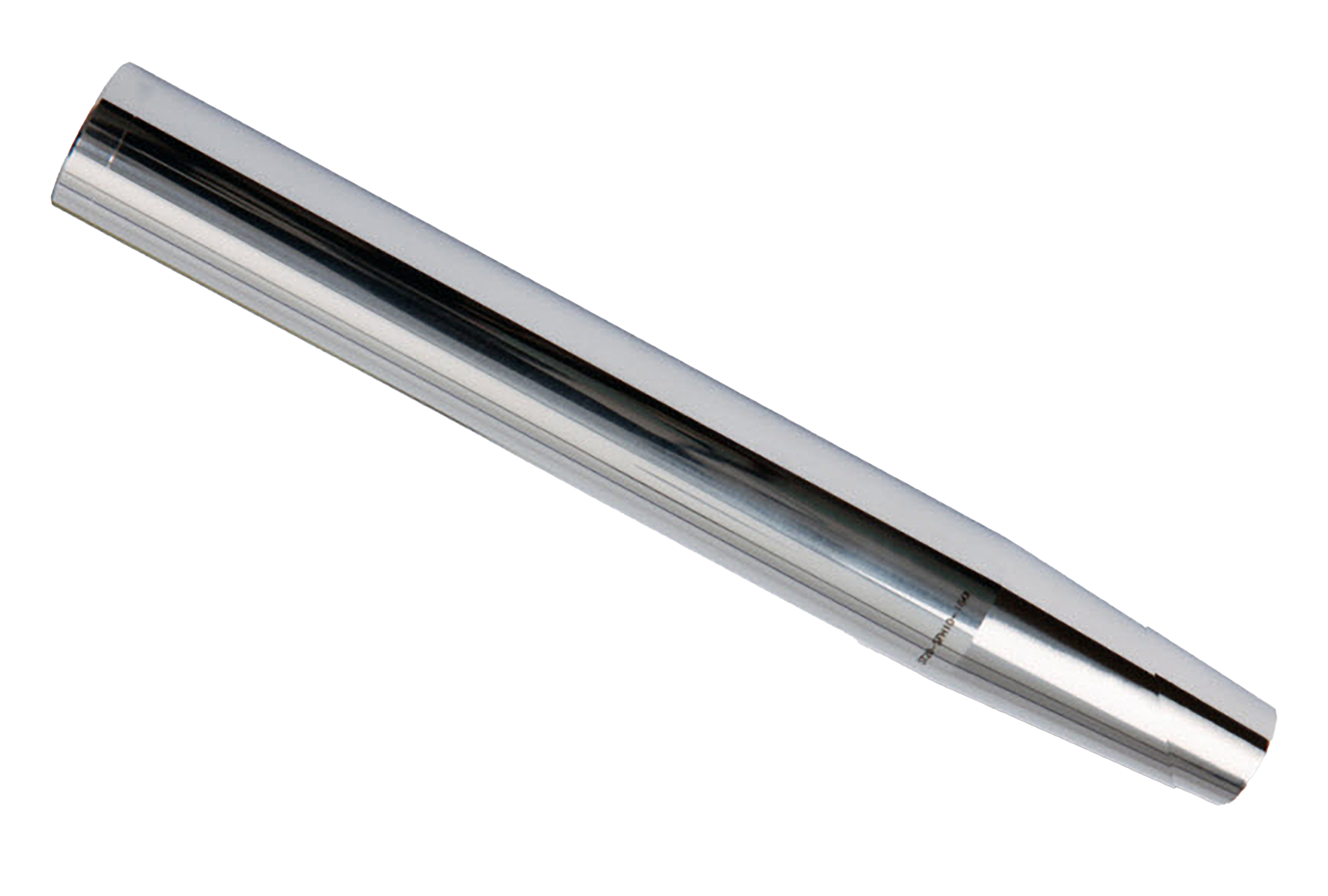

| Product Type | Shrink-Fit Extension |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Inch):
6-3/10"
Overall Length (Decimal Inch):
6.3000"
Overall Length (mm):
160.02mm
