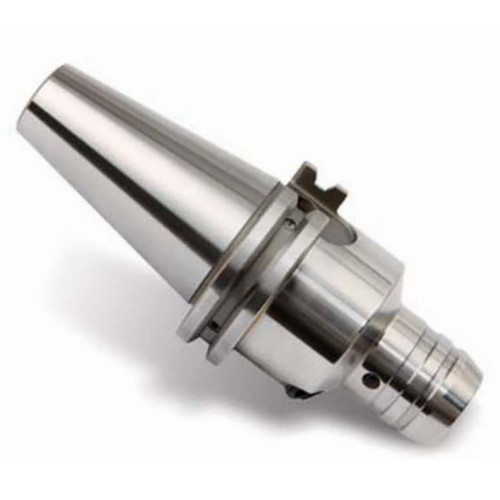

YG1 WC034 | 1.250" Diameter x 4.528" Gage Length 25000 RPM CAT50 Slim Dual Contact Hydraulic Chuck

$609.88
SKU:
55009007
Weight:
1.23 LBS
Shipping:
Free Shipping

Product Specifications
EDP NumberWC034
Shoulder Diameter (Inch)49-1/4"
Shoulder Diameter (mm)75.01mm
Shoulder Diameter (Decimal Inch)2.953"
Bore Diameter (Inch)1-1/4"
Bore Diameter (mm)31.75mm
Nose Diameter (mm)62.99mm
Bore Diameter (Decimal Inch)1.25"
Nose Diameter (Inch)2-1/2"
Nose Diameter (Decimal Inch)2.48"
Gage Length (Decimal Inch)4.528"
Gage Length (Inch)4-1/2"
Gage Length (mm)115.01mm
Bore Depth (Decimal Inch)2.441"
Bore Depth (Inch)2-7/16"
Bore Depth (mm)62.0014
Maximum Tool Depth inch (l2)2.165"
Maximum Tool Depth fraction (l2)2-3/16"
Maximum Tool Depth metric (L2)54.99mm
GradeM16x1.0
Taper AccuracyAT3
Grade Value2.5
RPM25000
Run Out (at 3D)<0.00012"
Coolant systemAD/B
Taper #CAT50
