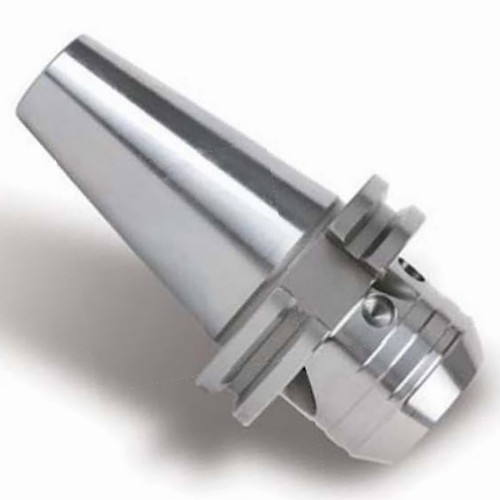

Product Specifications
| EDP Number | WG102PE |
| Shoulder Diameter (Inch) | 1-5/8" |
| Shoulder Diameter (mm) | 42mm |
| Shoulder Diameter (Decimal Inch) | 1.6535" |
| Bore Diameter (Inch) | 13/16" |
| Bore Diameter (mm) | 20mm |
| Nose Diameter (mm) | 38mm |
| Bore Diameter (Decimal Inch) | 0.7874" |
| Nose Diameter (Inch) | 1-1/2" |
| Nose Diameter (Decimal Inch) | 1.4961" |
| Major Diameter (Decimal Inch) | 1.7519" |
| Major Diameter (Inch) | 1-3/4" |
| Major Diameter (mm) | 44.5mm |
| Gage Length (Decimal Inch) | 3.5433" |
| Gage Length (Inch) | 3-9/16" |
| Gage Length (mm) | 90mm |
| Maximum Tool Depth inch (l2) | 1.8898" |
| Maximum Tool Depth fraction (l2) | 1-7/8" |
| Maximum Tool Depth metric (L2) | 48mm |
| Grade | M8x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | BT30 |
