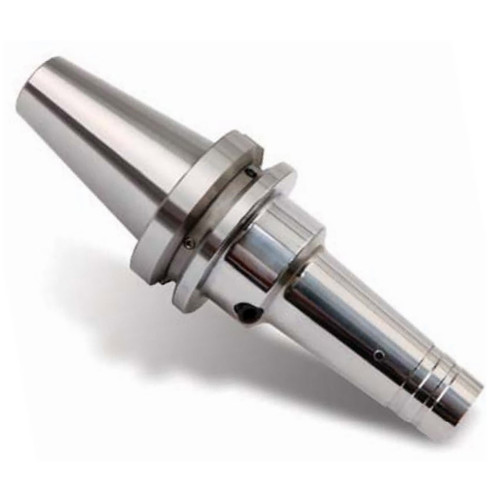

| Manufacturer Part Number | WH116HMC |
| Shoulder Diameter (Inch) | 1-3/4" |
| Shoulder Diameter (mm) | 44.5mm |
| Shoulder Diameter (Decimal Inch) | 1.752" |
| Bore Diameter (Inch) | 5/8" |
| Bore Diameter (mm) | 16mm |
| Nose Diameter (mm) | 32mm |
| Bore Diameter (Decimal Inch) | 0.6299" |
| Nose Diameter (Inch) | 1-1/4" |
| Nose Diameter (Decimal Inch) | 1.2598" |
| Gage Length (Decimal Inch) | 4.7244" |
| Gage Length (Inch) | 4-3/4" |
| Gage Length (mm) | 120mm |
| Bore Depth (Decimal Inch) | 2.7559" |
| Bore Depth (Inch) | 2-3/4" |
| Bore Depth (mm) | 70 |
| Maximum Tool Depth inch (l2) | 1.6535" |
| Maximum Tool Depth fraction (l2) | 1-5/8" |
| Maximum Tool Depth metric (L2) | 42mm |
| Grade | M12x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | BT40 |
