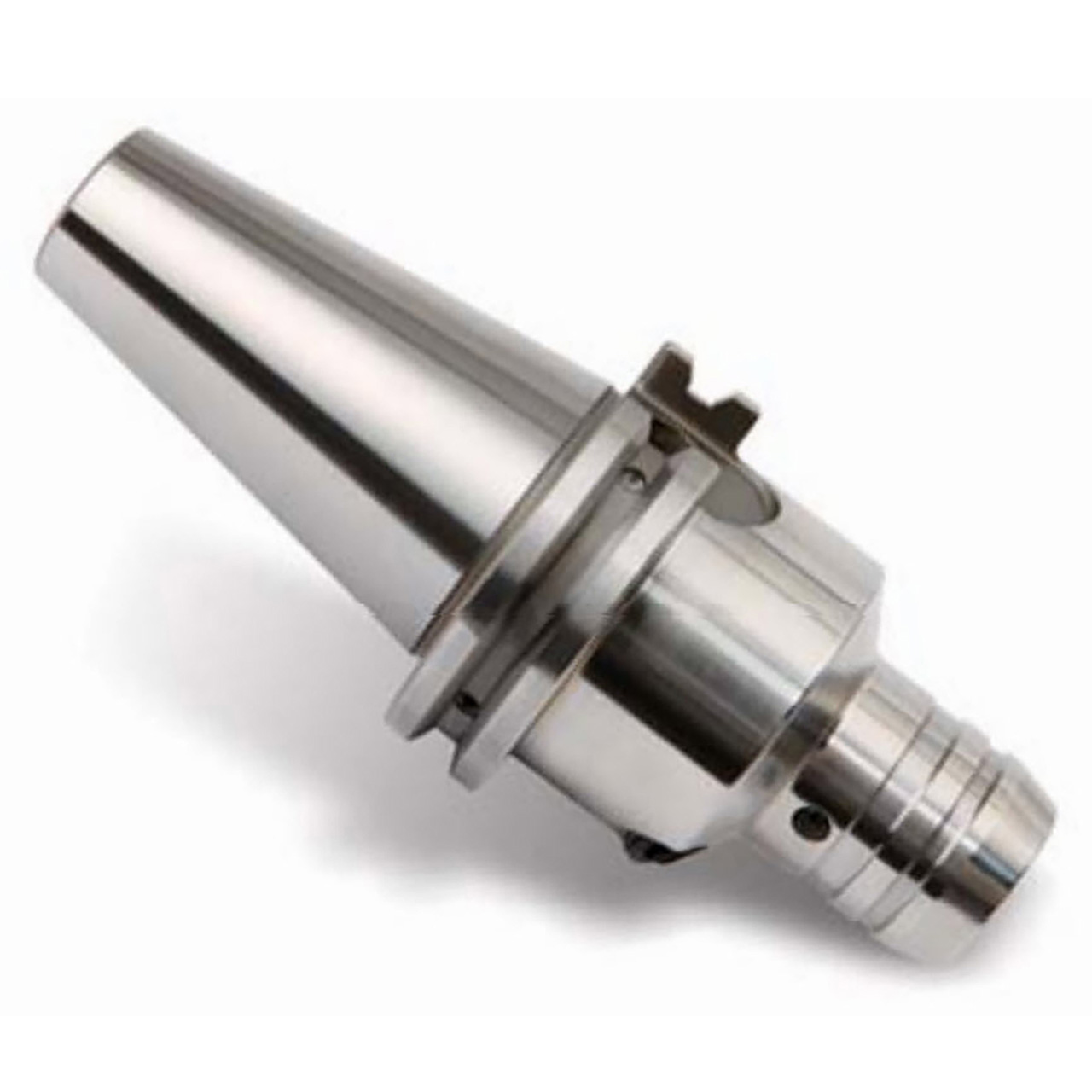

Product Specifications
| EDP Number | WK024 |
| Shoulder Diameter (Inch) | 1-3/4" |
| Shoulder Diameter (mm) | 44.45mm |
| Shoulder Diameter (Decimal Inch) | 1.75" |
| Bore Diameter (Inch) | 1/2" |
| Bore Diameter (mm) | 12.7mm |
| Nose Diameter (mm) | 32mm |
| Bore Diameter (Decimal Inch) | 0.5" |
| Nose Diameter (Inch) | 1-1/4" |
| Nose Diameter (Decimal Inch) | 1.26" |
| Gage Length (Decimal Inch) | 4" |
| Gage Length (Inch) | 4" |
| Gage Length (mm) | 101.60mm |
| Bore Depth (Decimal Inch) | 1.634" |
| Bore Depth (Inch) | 1-5/8" |
| Bore Depth (mm) | 41.5mm |
| Maximum Tool Depth inch (l2) | 1.457" |
| Maximum Tool Depth fraction (l2) | 1-7/16" |
| Maximum Tool Depth metric (L2) | 37.01mm |
| Grade | M10X1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
