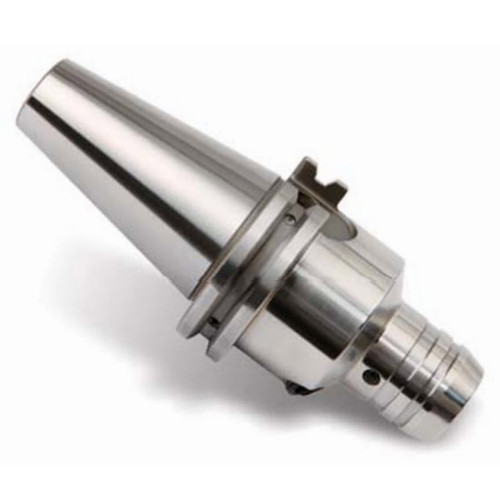

Product Specifications
| EDP Number | WK030 |
| Shoulder Diameter (Inch) | 2-1/2" |
| Shoulder Diameter (mm) | 62.99mm |
| Shoulder Diameter (Decimal Inch) | 2.48" |
| Bore Diameter (Inch) | 1" |
| Bore Diameter (mm) | 25.4mm |
| Nose Diameter (mm) | 54.99mm |
| Bore Diameter (Decimal Inch) | 1" |
| Nose Diameter (Inch) | 2-3/16" |
| Nose Diameter (Decimal Inch) | 2.165" |
| Gage Length (Decimal Inch) | 4" |
| Gage Length (Inch) | 4" |
| Gage Length (mm) | 101.60mm |
| Bore Depth (Decimal Inch) | 2.618" |
| Bore Depth (Inch) | 2-5/8" |
| Bore Depth (mm) | 66.5mm |
| Maximum Tool Depth inch (l2) | 1.89" |
| Maximum Tool Depth fraction (l2) | 1-7/8" |
| Maximum Tool Depth metric (L2) | 48.01mm |
| Grade | M16X1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
