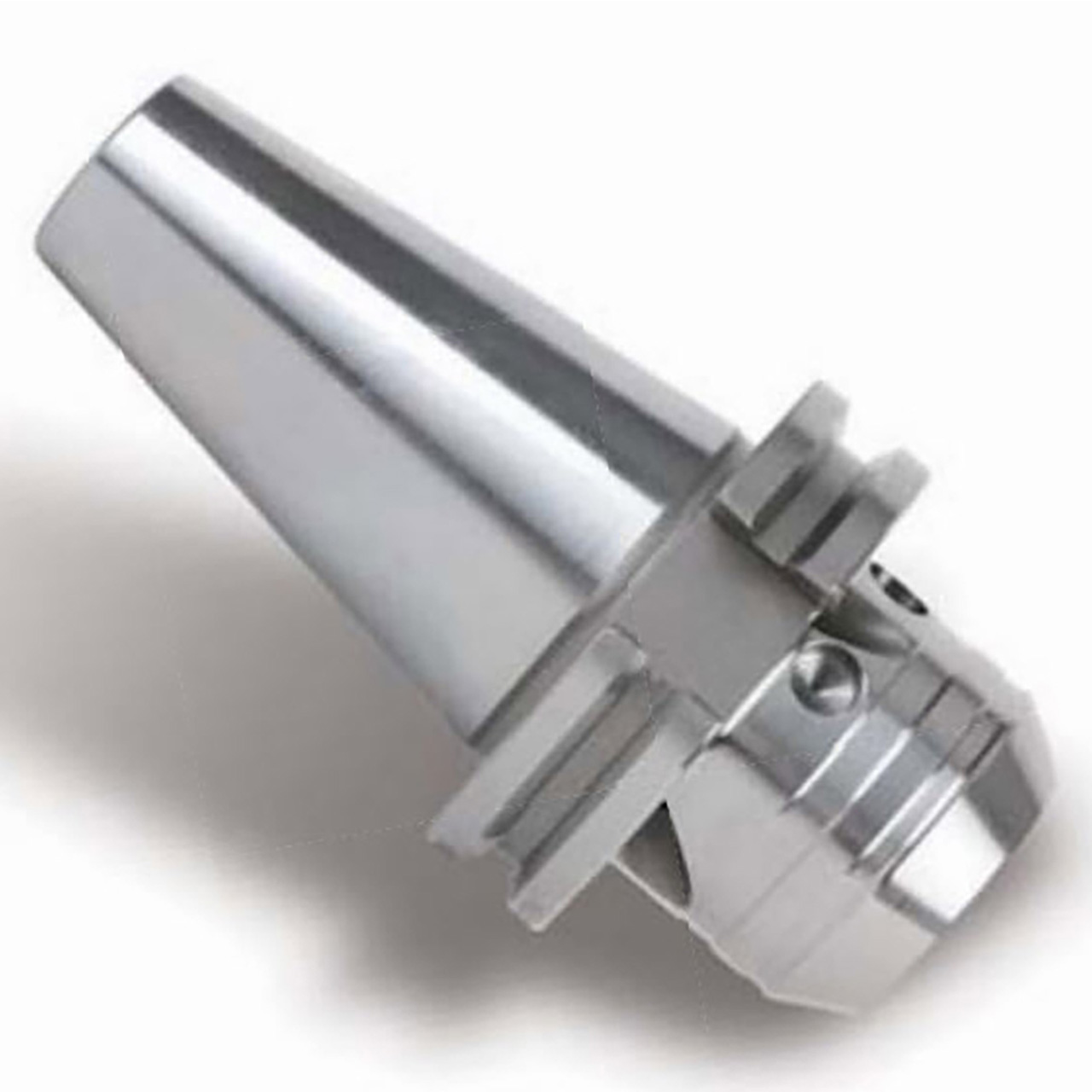

Product Specifications
| EDP Number | WK103PE |
| Shoulder Diameter (Inch) | 1-15/16" |
| Shoulder Diameter (mm) | 49.25mm |
| Shoulder Diameter (Decimal Inch) | 1.939" |
| Bore Diameter (Inch) | 13/16" |
| Bore Diameter (mm) | 20mm |
| Nose Diameter (mm) | 38mm |
| Bore Diameter (Decimal Inch) | 0.7874" |
| Nose Diameter (Inch) | 1-1/2" |
| Nose Diameter (Decimal Inch) | 1.4961" |
| Gage Length (Decimal Inch) | 4" |
| Gage Length (Inch) | 4" |
| Gage Length (mm) | 101.60mm |
| Maximum Tool Depth inch (l2) | 1.8898" |
| Maximum Tool Depth fraction (l2) | 1-7/8" |
| Maximum Tool Depth metric (L2) | 48mm |
| Grade | M8x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT40 |
