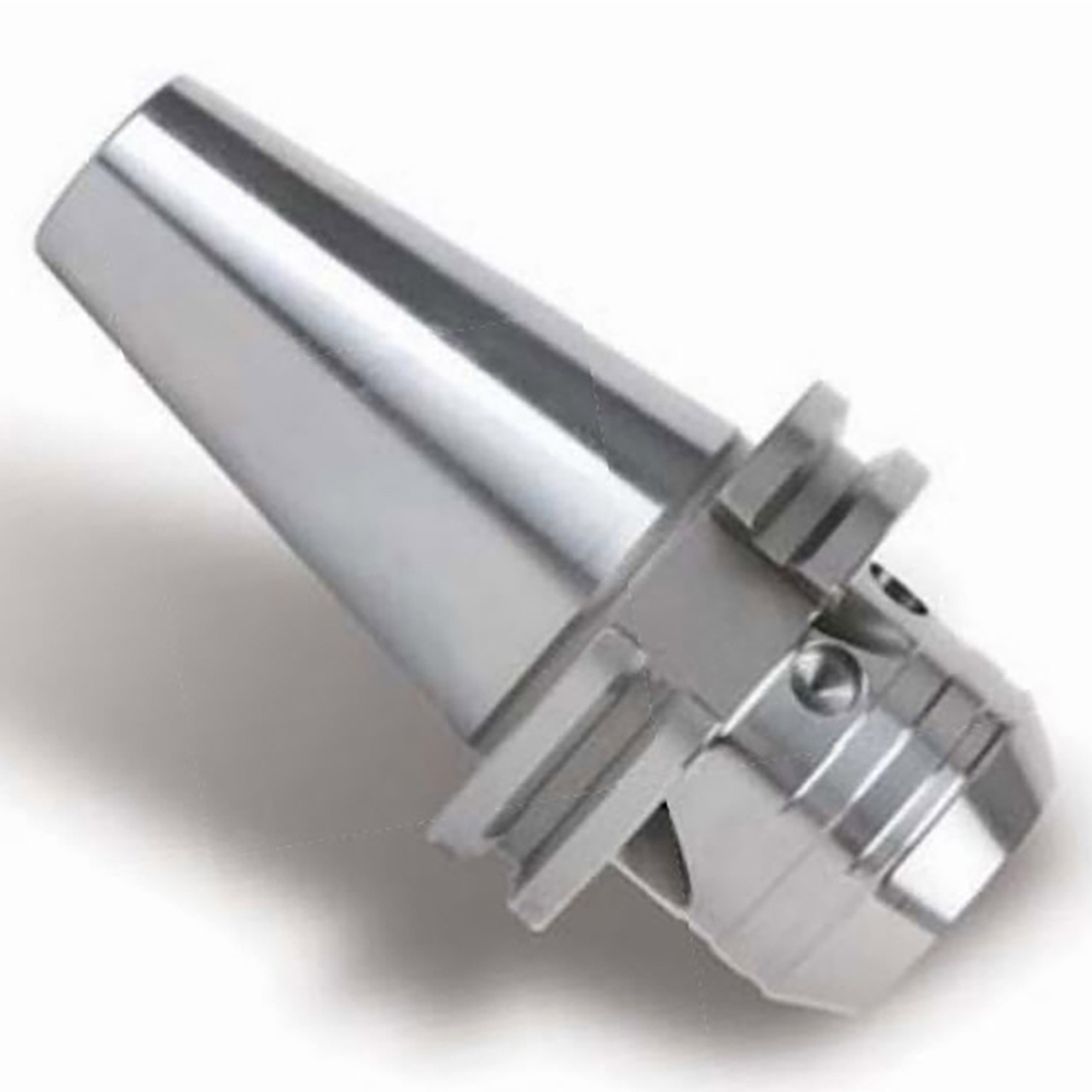

| Manufacturer Part Number | WL106PE |
| Shoulder Diameter (Inch) | 2-13/16" |
| Shoulder Diameter (mm) | 72mm |
| Shoulder Diameter (Decimal Inch) | 2.8346" |
| Bore Diameter (Inch) | 1-1/4" |
| Bore Diameter (mm) | 32mm |
| Nose Diameter (mm) | 58.5mm |
| Bore Diameter (Decimal Inch) | 1.2598" |
| Nose Diameter (Inch) | 2-5/16" |
| Nose Diameter (Decimal Inch) | 2.3031" |
| Gage Length (Decimal Inch) | 6" |
| Gage Length (Inch) | 6" |
| Gage Length (mm) | 152.40mm |
| Maximum Tool Depth inch (l2) | 2.2441" |
| Maximum Tool Depth fraction (l2) | 2-1/4" |
| Maximum Tool Depth metric (L2) | 57mm |
| Grade | M8x1.0 |
| Taper Accuracy | AT3 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD/B |
| Taper # | CAT50 |
