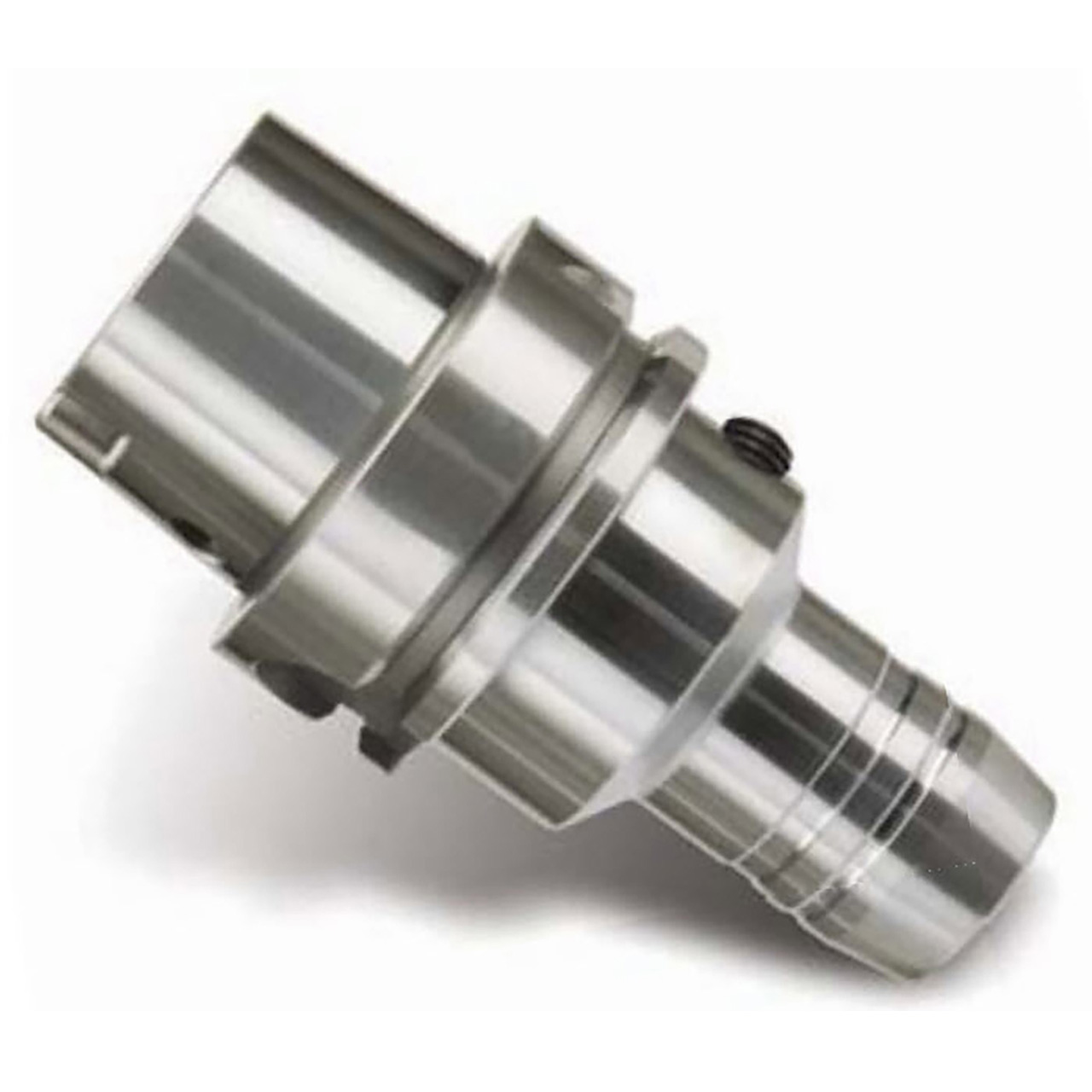

| Manufacturer Part Number | WQ026 |
| Shoulder Diameter (Inch) | 2-1/2" |
| Shoulder Diameter (mm) | 50.01mm |
| Shoulder Diameter (Decimal Inch) | 1.969" |
| Bore Diameter (Inch) | 3/4" |
| Bore Diameter (mm) | 19.05mm |
| Nose Diameter (mm) | 42.01mm |
| Bore Diameter (Decimal Inch) | 0.75" |
| Nose Diameter (Inch) | 1-5/8" |
| Nose Diameter (Decimal Inch) | 1.654" |
| Gage Length (Decimal Inch) | 3.543" |
| Gage Length (Inch) | 3-9/16" |
| Gage Length (mm) | 89.99mm |
| Bore Depth (Decimal Inch) | 1.89" |
| Bore Depth (Inch) | 1-7/8" |
| Bore Depth (mm) | 48.006 |
| Maximum Tool Depth inch (l2) | 1.654" |
| Maximum Tool Depth fraction (l2) | 1-5/8" |
| Maximum Tool Depth metric (L2) | 42.01mm |
| Grade | M16x1.0 |
| Grade Value | 2.5 |
| RPM | 25000 |
| Run Out (at 3D) | <0.00012" |
| Coolant system | AD |
| Taper # | HSK63A |
