Product Specifications
| EDP Number | XGMF20032040 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Neck Diameter (Inch) | 15/32" |
| Neck Diameter (mm) | 11.91mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 0.5000" |
| Length of Cut (Inch) | 1/2" |
| Length of Cut (mm) | 12.70mm |
| Length Below Shank (Decimal Inch) | 0.8350" |
| Length Below Shank (Inch) | 81/97" |
| Length Below Shank (mm) | 21.21mm |
| Coupling Diameter (Decimal Inch) | 0.2560" |
| Coupling (Inch) | 11/43" |
| Coupling (mm) | 6.50mm |
| Wrench Width (Decimal Inch) | 0.3940" |
| Wrench Width (Inch) | 13/33" |
| Wrench Width (mm) | 10.01mm |
| Corner Radius (Decimal Inch) | 0.0400" |
| Corner Radius (Inch) | 1/25" |
| Corner Radius (mm) | 1.02mm |
| Number of Flutes | 4 |
| Series | XGMF20 |
| Thread | M6 |
| Wrench Code | SPIS0810 |
| Helix Angle (Degree) | 27 Degree/30 Degree |
| Material | Carbide |
| Application | P |
| Cutting Direction | Right Hand |
| Cut Type | Center Cut |
| Type | Corner Radius |

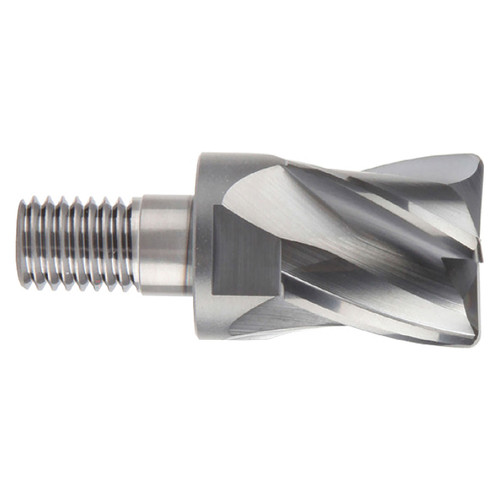

| Product Type | Corner Radius End Mill Head |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Carbide
Application:
P
Cutting Direction:
Right Hand
interval quantity:
