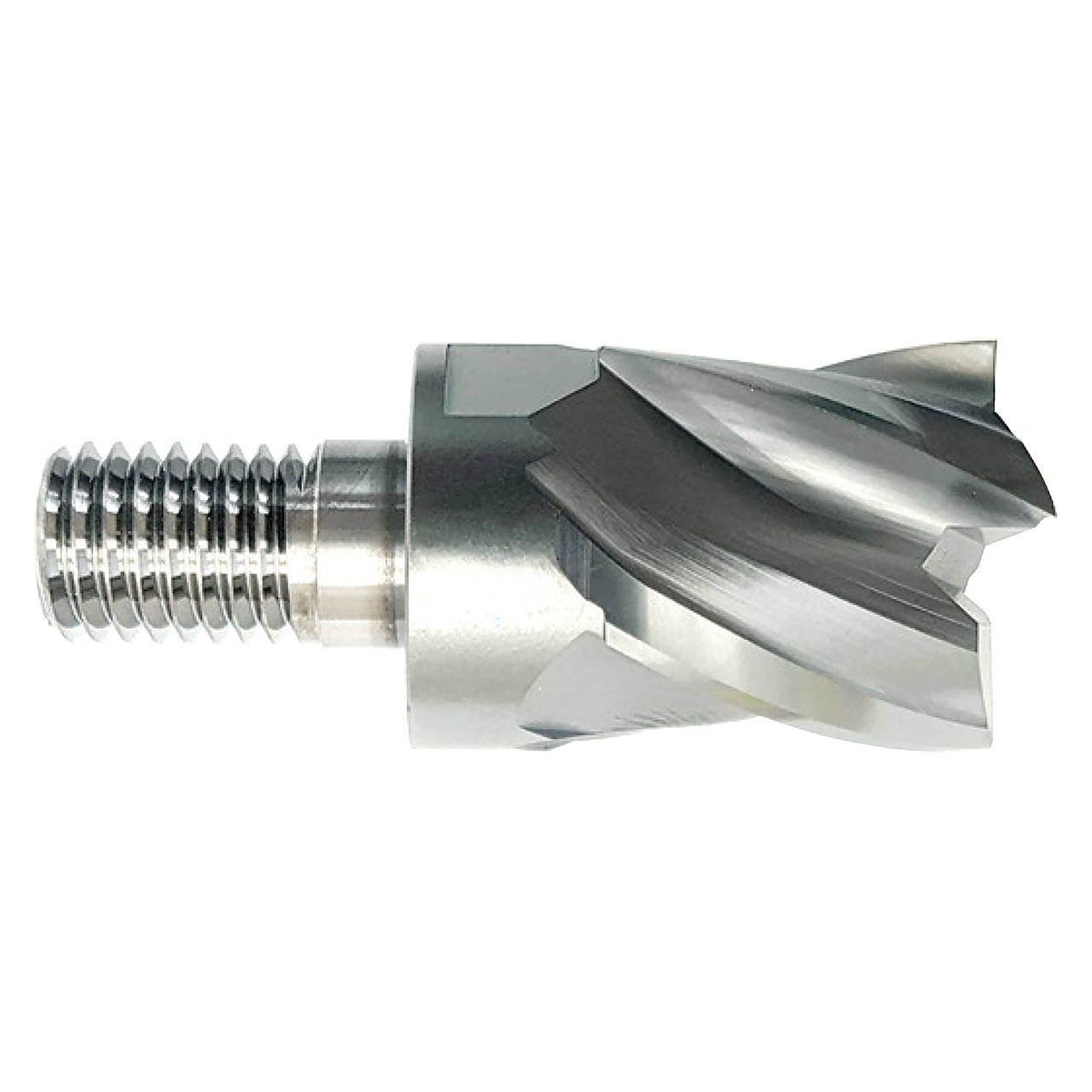

| Manufacturer Part Number | XGMF25024 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Neck Diameter (Decimal Inch) | 0.3510" |
| Neck Diameter (Inch) | 33/94" |
| Neck Diameter (mm) | 8.92mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (mm) | 9.53mm |
| Length Below Shank (Decimal Inch) | 0.6890" |
| Length Below Shank (Inch) | 31/45" |
| Length Below Shank (mm) | 17.50mm |
| Coupling Diameter (Decimal Inch) | 0.2560" |
| Coupling (Inch) | 11/43" |
| Coupling (mm) | 6.50mm |
| Wrench Width (Decimal Inch) | 0.3150" |
| Wrench Width (Inch) | 23/73" |
| Wrench Width (mm) | 8.00mm |
| Number of Flutes | 4 |
| Series | XGMF25 |
| Thread | M6 |
| Wrench Code | SPIS0810 |
| Helix Angle (Degree) | 27 Degree/30 Degree |
| Material | Carbide |
| Application | P |
| Cutting Direction | Right Hand |
| Cut Type | Center Cut |
| Type | Square |
| Product Type | Square End Mill Head |
