| Manufacturer Part Number | Y03F09 |
| Diameter (Decimal Inch) | 0.9252" |
| Diameter (Inch) | 37/40" |
| Diameter (mm) | 23.50mm |
| Thickness (Decimal Inch) | 0.2362" |
| Thickness (Inch) | 13/55" |
| Thickness (mm) | 6.00mm |
| Insert Height (Decimal Inch) | 0.6890" |
| Insert Height (Inch) | 31/45" |
| Insert Height (mm) | 0.70mm |
| Point Length (Decimal Inch) | 0.1684" |
| Point Length (mm) | 4.30mm |
| Point Angle (Degree) | 140 Degree |
| Holder Type | F |
| Coating | TiAIN |
| Material | Carbide |
| Application | P,K |

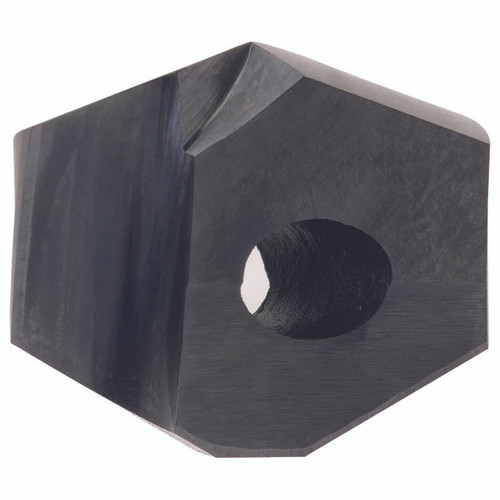

| Product Type | Dream Drill Insert |
