| Manufacturer Part Number | YI3C05 |
| Diameter (Decimal Inch) | 0.6417" |
| Diameter (Inch) | 43/67" |
| Diameter (mm) | 16.30mm |
| Thickness (Decimal Inch) | 0.1772" |
| Thickness (Inch) | 14/79" |
| Thickness (mm) | 4.50mm |
| Insert Height (Decimal Inch) | 0.5310" |
| Insert Height (Inch) | 17/32" |
| Insert Height (mm) | 0.50mm |
| Point Length (Decimal Inch) | 0.1168" |
| Point Length (mm) | 3.00mm |
| Point Angle (Degree) | 140 Degree |
| Holder Type | C |
| Coating | TiCN |
| Material | Carbide |
| Application | M |

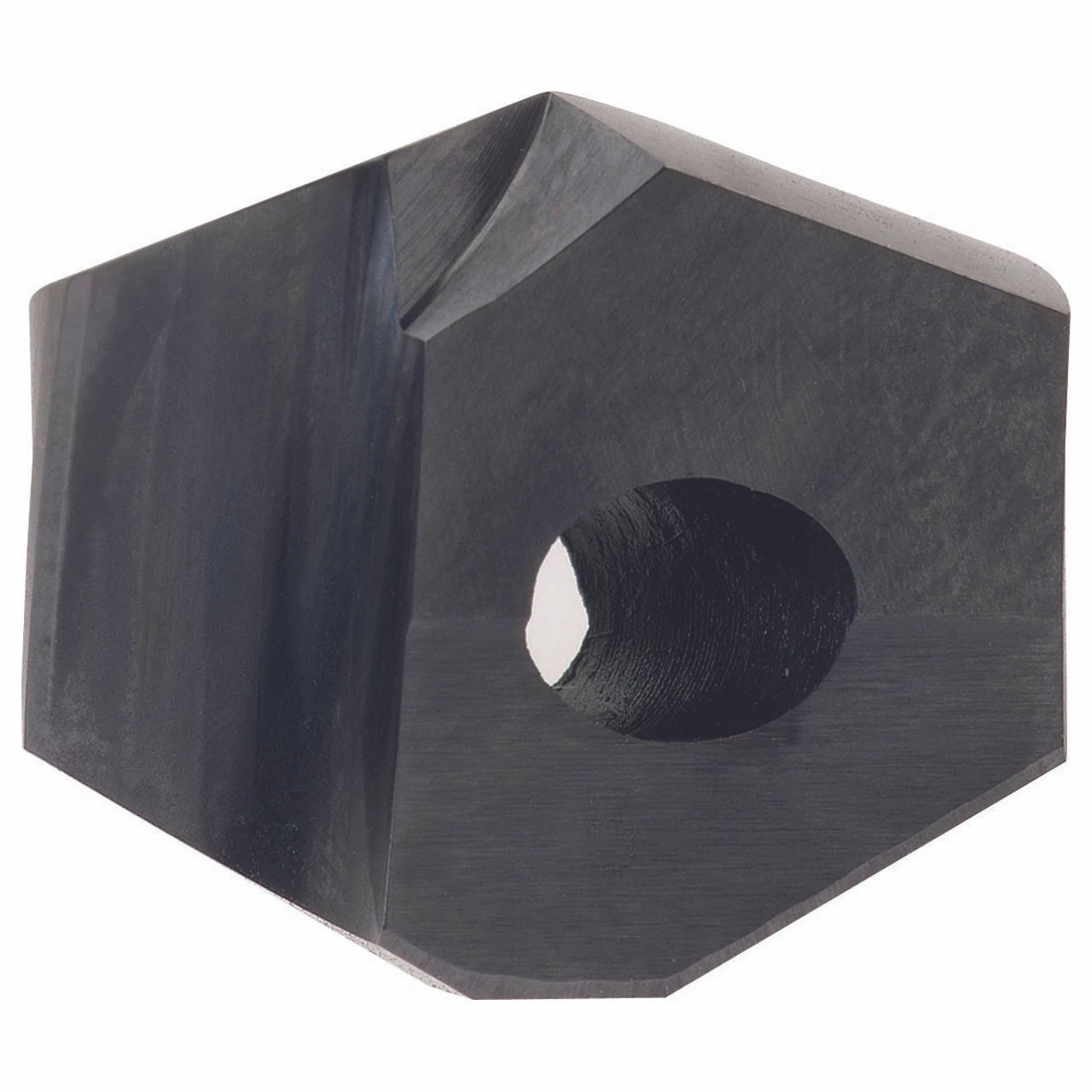

| Product Type | Dream Drill Insert |
