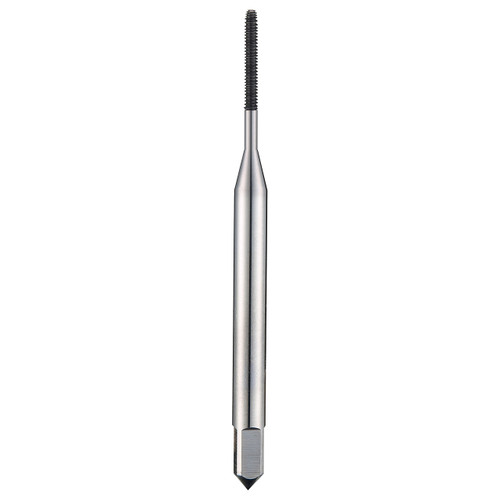

YG1 Z2123 | 48x#3 Thread x 0.0990" Diameter x 0.1410" Shank x 1.8100" OAL 4 Lobe Bright Coated HSSE-V3 Thread Forming Tap

$24.18 $14.80
(You save $9.38)
Brand:
YG1
Finish/Coating:
Bright
Material:
HSSE-V3
Diameter (Decimal Inch):
0.0990"
Diameter (mm):
2.51mm
Overall Length (Decimal Inch):
1.8100"
Overall Length (mm):
45.97mm
interval quantity:
1
SKU:
15013582
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 Z2123 | 48x#3 Thread x 0.0990" Diameter x 0.1410" Shank x 1.8100" OAL 4 Lobe Bright Coated HSSE-V3 Thread Forming Tap

Product Specifications
# Manufacturer NumberZ2123
Diameter (Decimal Inch)0.0990"
Diameter (mm)2.51mm
Pitch48 TPI
Size#3
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)3.58mm
Overall Length (Decimal Inch)1.8100"
Overall Length (mm)46.00mm
Thread Length (Decimal Inch)0.5000"
Thread Length (mm)12.70mm
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Drill Size (Decimal Inch)0.0898"
Drill Size (mm)2.28mm
Number of Lobes4
Length Diameter3.0 x D
Shank TypeSquare
CoatingBright
MaterialHSSE-V3
Thread SeriesUNC
SeriesZ2
Product TypeThread Forming Tap
