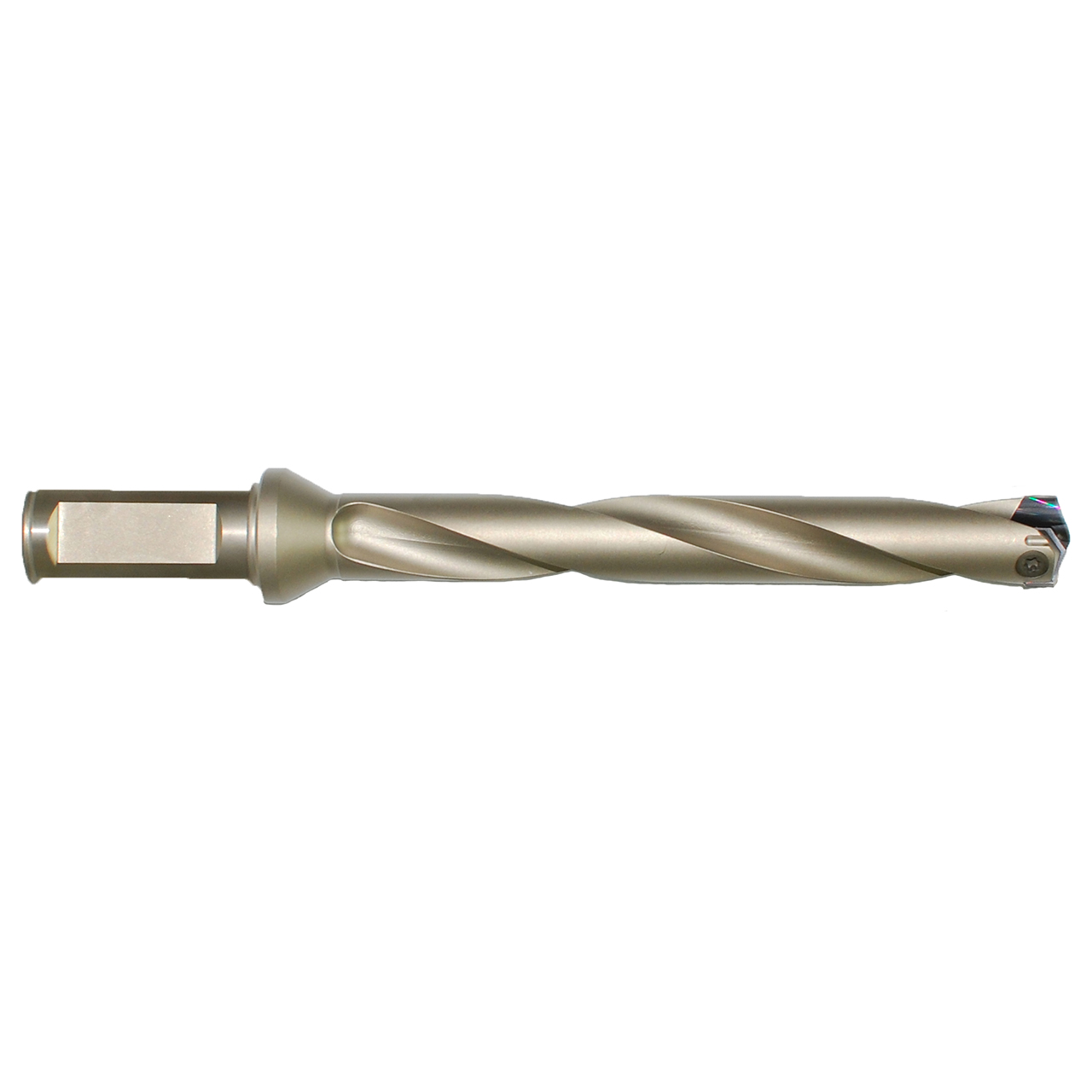

YG1 ZB0704 | 0.5906" Diameter x 2.0000" Shank x 4.2656" Maximum Drill Depth x 7.3438" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

$492.06 $334.60
(You save $157.46)
Brand:
YG1
Series:
ZB
Maximum Drill Depth (Inch):
4-17/64"
Maximum Drill Depth (Decimal Inch):
4.2656"
Maximum Drill Depth (mm):
108.35mm
Through Coolant:
Yes
interval quantity:
1
SKU:
10032238
UPC:
Weight:
0.64 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 ZB0704 | 0.5906" Diameter x 2.0000" Shank x 4.2656" Maximum Drill Depth x 7.3438" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

Product Specifications
# Manufacturer NumberZB0704
Diameter (Decimal Inch)0.5906"
Diameter (mm)15.00mm
Shank Diameter (mm)19.05mm
Shank Diameter (Decimal Inch)0.7500"
Minimum Insert Diameter (Decimal Inch)0.6102"
Minimum Insert Diameter (mm)15.50mm
Maximum Insert Diameter (Decimal Inch)0.6250"
Maximum Insert Diameter (mm)15.88mm
Shank Length (Decimal Inch)2.0000"
Shank Length (Inch)2"
Shank Length (mm)50.80mm
Flange Diameter (Decimal Inch)1.0000"
Flange Diameter (Inch)1"
Flange Diameter (mm)25.40mm
Maximum Drill Depth (Decimal Inch)4.2656"
Maximum Drill Depth (mm)108.35mm
Overall Length (Decimal Inch)7.3438"
Overall Length (mm)186.53mm
Length Diameter7xD
Number of Flutes2
SeriesZB
Coolant ThroughYes
CoatingNickel-Based
MaterialAlloy Steel
Flute TypeSpiral
Product TypeDream Drill Holder
