Product Specifications

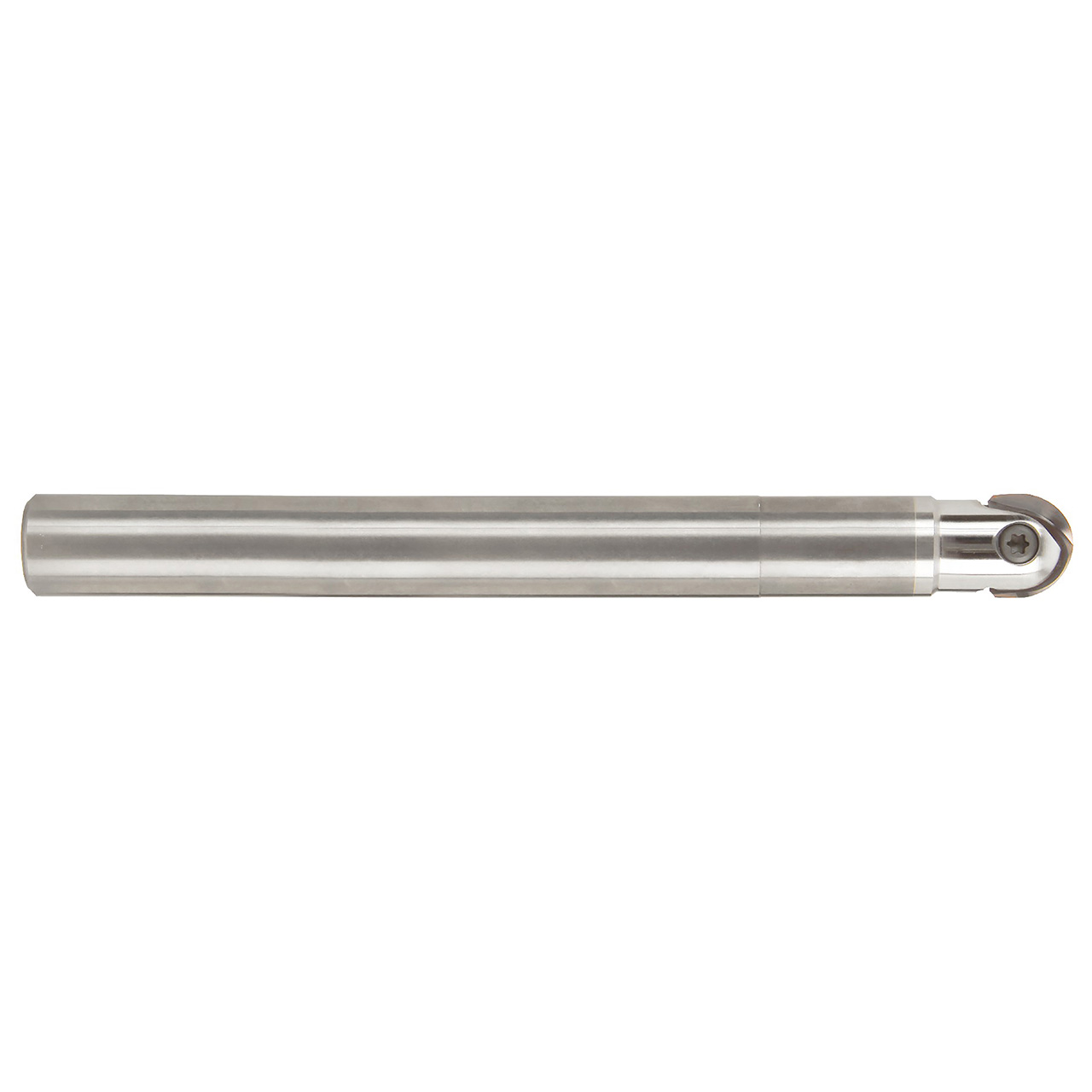

| Manufacturer Part Number | ZBC1160 |
| Diameter (Inch) | 17/27" |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 37/47" |
| Length of Cut (Decimal Inch) | 0.7874" |
| Length of Cut (mm) | 20.00mm |
| LBS (Inch) | 46-0/16" |
| LBS (Decimal Inch) | 1.9685" |
| LBS (mm) | 50.00mm |
| Overall Length (Inch) | 7-7/8" |
| Overall Length (Decimal Inch) | 7.8740" |
| Overall Length (mm) | 200.00mm |
| Neck Diameter (Inch) | 34/55" |
| Neck Diameter (Decimal Inch) | 0.6181" |
| Neck Diameter (mm) | 15.70mm |
| Coating | Bright |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Product Type | Milling Ball Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Carbide
Finish/Coating:
Bright
