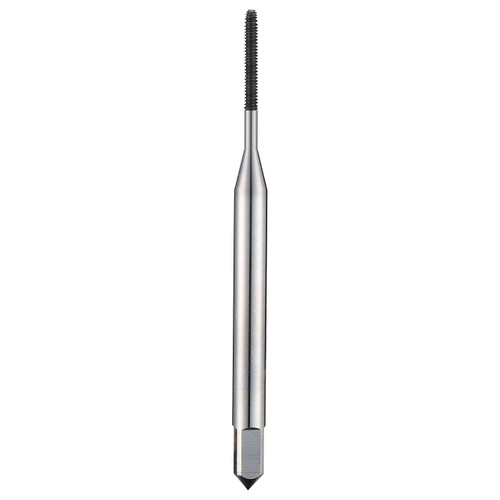

YG1 ZF104 | 64x#2 Thread x 0.0860" Diameter x 0.1410" Shank x 1.7500" OAL 4 Lobe Bright Coated HSSE-V3 Miniature Forming Tap

$23.53 $14.40
(You save $9.13)
Brand:
YG1
Finish/Coating:
Bright
Material:
HSSE-V3
Diameter (Decimal Inch):
0.0860"
Diameter (mm):
2.18mm
Overall Length (Decimal Inch):
1.7500"
Overall Length (mm):
44.45mm
interval quantity:
1
SKU:
15013972
UPC:
Weight:
0.01 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
YG1 ZF104 | 64x#2 Thread x 0.0860" Diameter x 0.1410" Shank x 1.7500" OAL 4 Lobe Bright Coated HSSE-V3 Miniature Forming Tap

Product Specifications
# Manufacturer NumberZF104
Diameter (Decimal Inch)0.0860"
Diameter (mm)2.18mm
Pitch64 TPI
Size#2
Shank Diameter (Decimal Inch)0.1410"
Shank Diameter (mm)3.58mm
Overall Length (Decimal Inch)1.7500"
Overall Length (mm)44.50mm
Thread Length (Decimal Inch)0.4400"
Thread Length (mm)11.18mm
Square Length (Decimal Inch)0.1900"
Square Length (mm)4.83mm
Square Size (Decimal Inch)0.1100"
Square Size (mm)2.79mm
Drill Size (Decimal Inch)0.0791"
Drill Size (mm)2.01mm
Number of Lobes4
Length Diameter3.0 x D
Shank TypeSquare
CoatingBright
MaterialHSSE-V3
Thread SeriesUNF
SeriesZF
Product TypeMiniature Forming Tap
