| Manufacturer Part Number | ZFM52 |
| Diameter (Decimal Inch) | 0.0470" |
| Diameter (mm) | 1.19mm |
| Pitch | 90 TPI |
| Size | #00 |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Overall Length (Decimal Inch) | 1.6300" |
| Overall Length (mm) | 41.40mm |
| Thread Length (Decimal Inch) | 0.2500" |
| Thread Length (mm) | 6.35mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Drill Size (Decimal Inch) | 0.0421" |
| Drill Size (mm) | 1.07mm |
| Number of Lobes | 4 |
| Length Diameter | 3.0 x D |
| Shank Type | Square |
| Coating | Bright |
| Material | HSSE-V3 |
| Thread Series | UNF |
| Series | ZF |

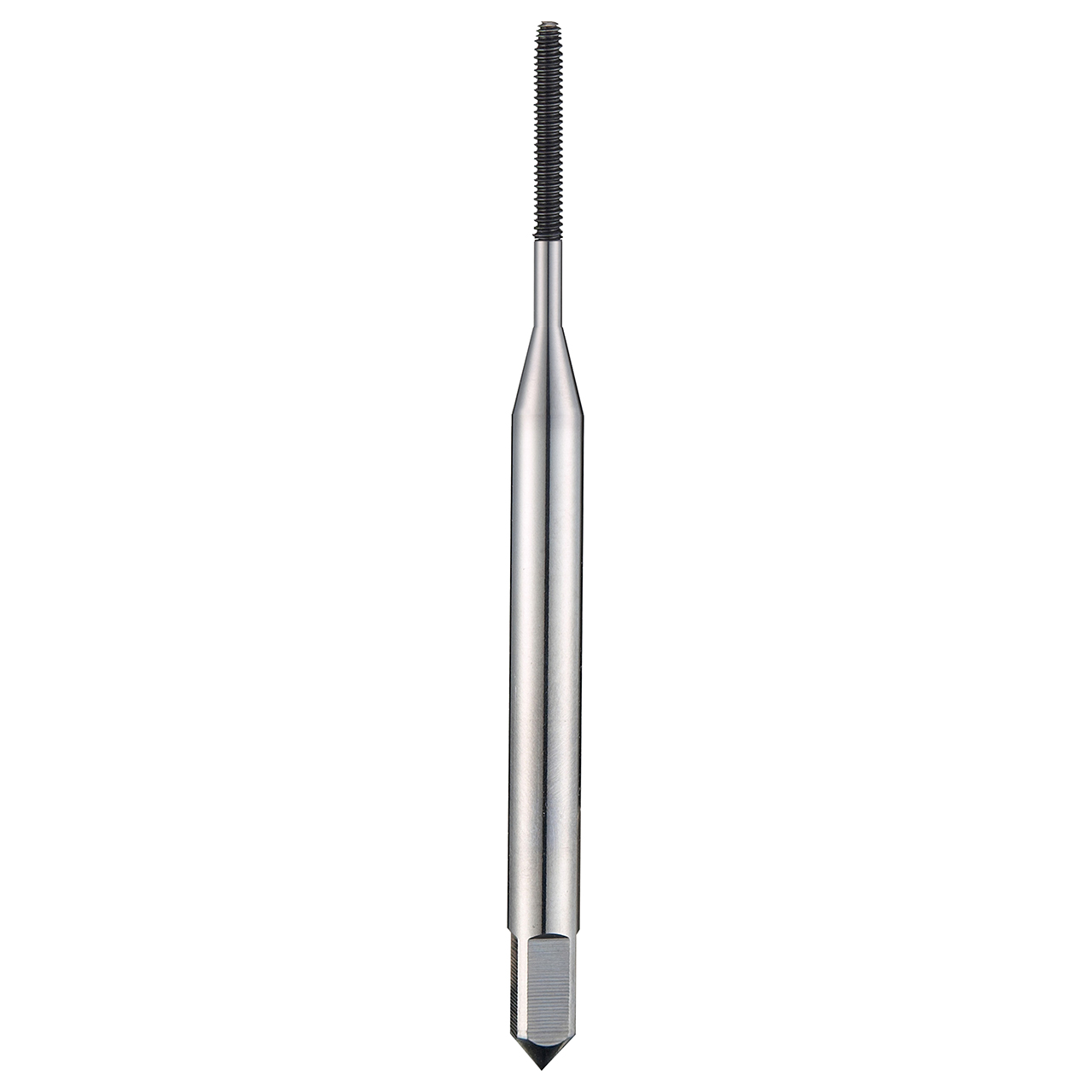

| Product Type | Miniature Forming Tap |
