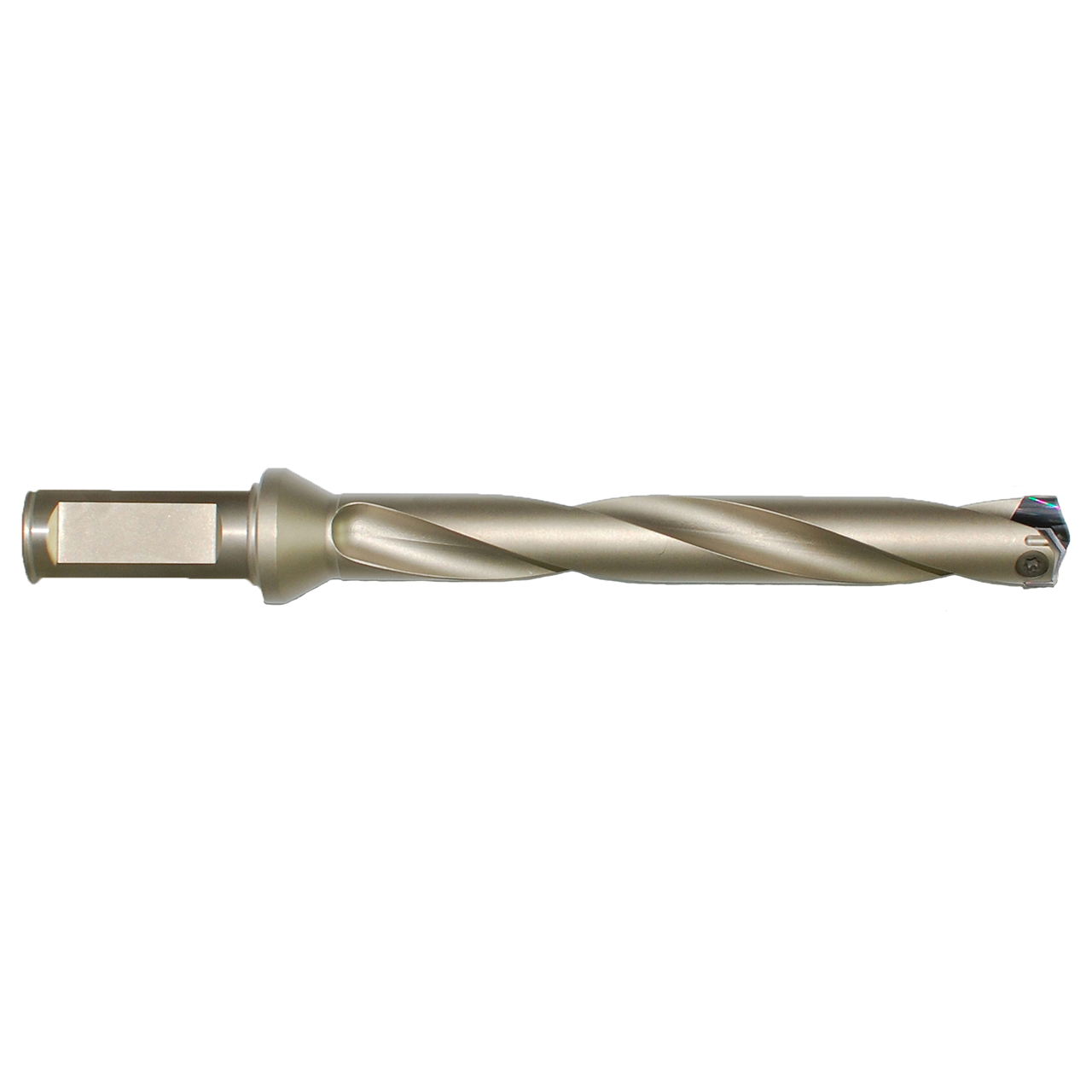

YG1 ZJ0303 | 1.1929" Diameter x 2.3750" Shank x 3.6563" Maximum Drill Depth x 7.4063" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

$617.02 $419.57
(You save $197.45)
Brand:
YG1
Series:
ZJ
Maximum Drill Depth (Inch):
3-21/32"
Maximum Drill Depth (Decimal Inch):
3.6563"
Maximum Drill Depth (mm):
92.87mm
Through Coolant:
Yes
interval quantity:
1
SKU:
10032324
UPC:
Weight:
2.09 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
YG1 ZJ0303 | 1.1929" Diameter x 2.3750" Shank x 3.6563" Maximum Drill Depth x 7.4063" OAL 2 Flute Nickel-Based Coated Alloy Steel Dream Drill Holder

Product Specifications
# Manufacturer NumberZJ0303
Diameter (Decimal Inch)1.1929"
Diameter (mm)30.30mm
Shank Diameter (mm)31.75mm
Shank Diameter (Decimal Inch)1.2500"
Minimum Insert Diameter (Decimal Inch)1.2205"
Minimum Insert Diameter (mm)31.00mm
Maximum Insert Diameter (Decimal Inch)1.2205"
Maximum Insert Diameter (mm)31.00mm
Shank Length (Decimal Inch)2.3750"
Shank Length (mm)60.33mm
Flange Diameter (Decimal Inch)1.4688"
Flange Diameter (Inch)1-15.32
Flange Diameter (mm)37.31mm
Maximum Drill Depth (Decimal Inch)3.6563"
Maximum Drill Depth (mm)92.87mm
Overall Length (Decimal Inch)7.4063"
Overall Length (mm)188.12mm
Length Diameter3xD
Number of Flutes2
SeriesZJ
Coolant ThroughYes
CoatingNickel-Based
MaterialAlloy Steel
Flute TypeSpiral
Product TypeDream Drill Holder
