Product Specifications

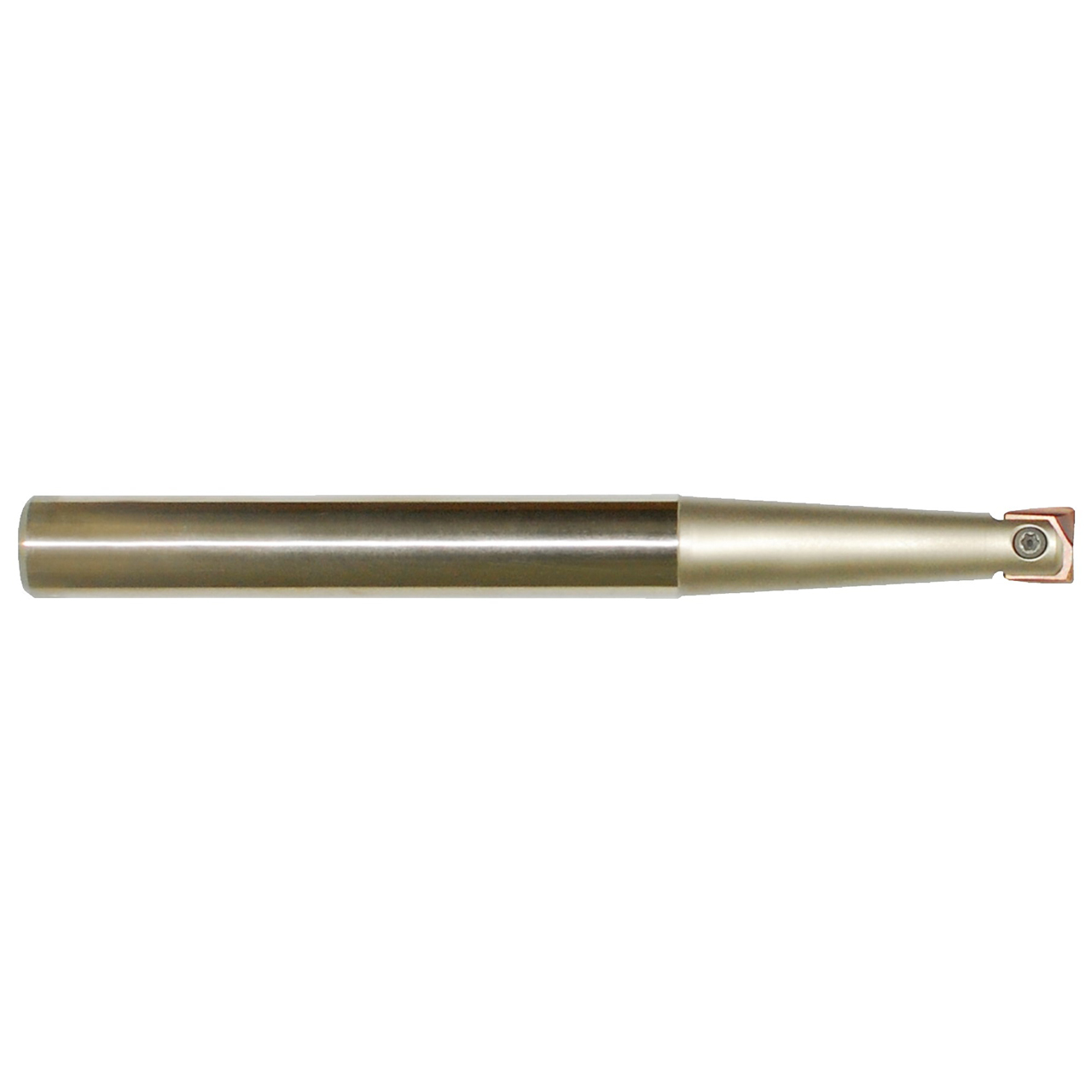

| Manufacturer Part Number | ZRT2410 |
| Diameter (Inch) | 3/8" |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 17/32" |
| Length of Cut (Decimal Inch) | 0.5313" |
| Length of Cut (mm) | 13.49mm |
| LBS (Inch) | 40-5/16" |
| LBS (Decimal Inch) | 1.0000" |
| LBS (mm) | 25.40mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Neck Diameter (Inch) | 5/16" |
| Neck Diameter (Decimal Inch) | 0.3125" |
| Neck Diameter (mm) | 7.94mm |
| Coating | Nickel-Based |
| Material | Alloy Steel |
| Cutting Direction | Right Hand |
| Product Type | Insert Corner Radius |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Material:
Alloy Steel
Finish/Coating:
Nickel-Based
