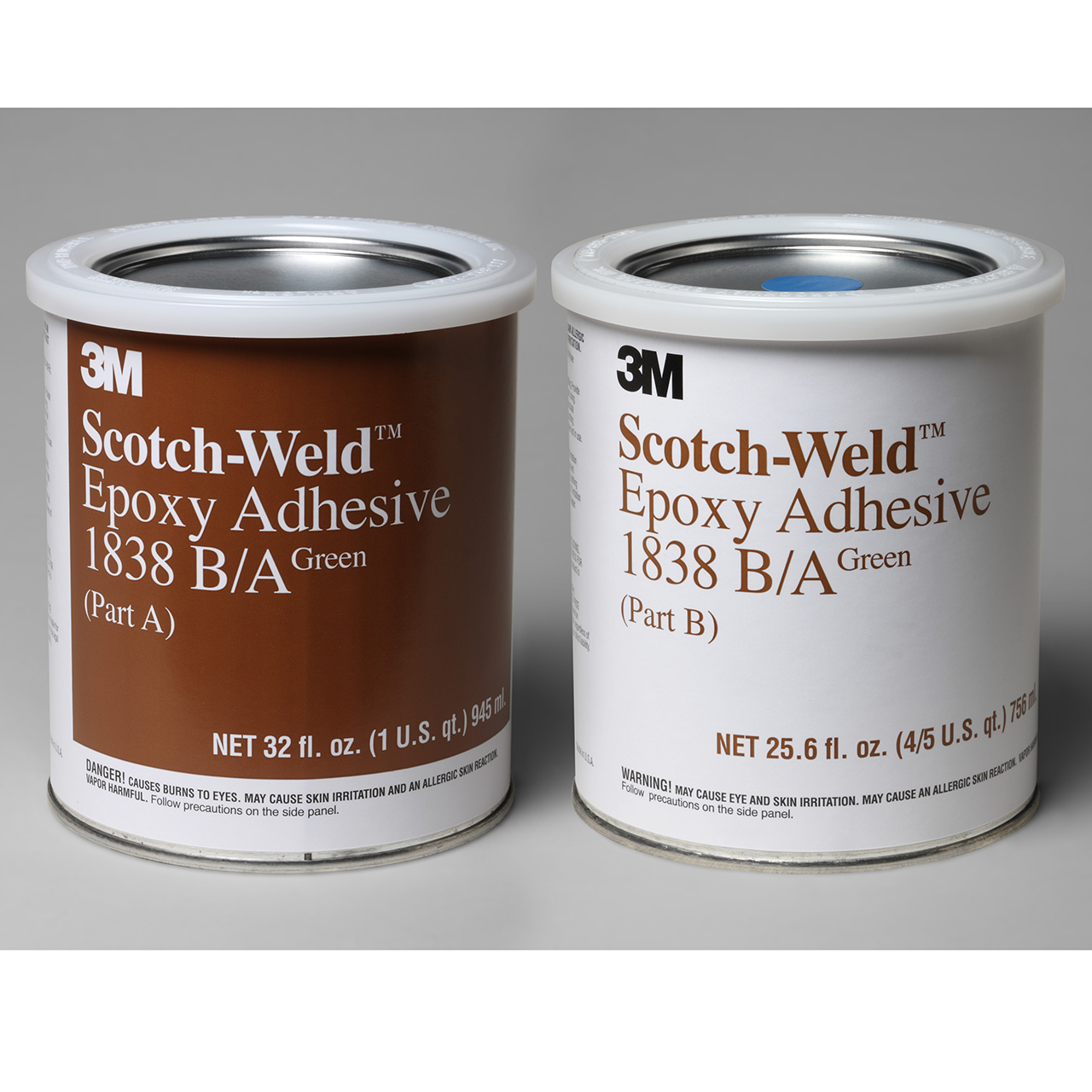

3M Scotch-Weld Epoxy Adhesive 1838 is a two-part epoxy adhesive that offers rigid bonds and high shear strength. Developed as a strong solution, this epoxy adhesive provides the results needed for projects requiring a durable bond that can be applied to a wide variety of metals, woods and some plastics.
Formulated to Create Rigid Bonds for Reliable Adhesion3M Scotch-Weld Epoxy Adhesive 1838 is a controlled-flow product with high viscosity which allows for easy dispensing and ensures application is precise, accurate and reaches the desired results. Scotch-Weld Epoxy Adhesive 1838 provides high shear strength to deliver better dead load holding. With a 4:5 mix ratio, this particular epoxy adhesive is formulated to cure at room temperature. Upon mixing, 3M Scotch-Weld Epoxy Adhesive 1838 has a 60-minute work-life and reaches handling strength in approximately 8 hours and full cure in 7 days. The extended work-life provides extra time to adjust the application, position parts in order to meet the desired results.
-
Recommended Applications
- Metal bonding
- Metal to wood bonding
Epoxy adhesives are part of the class of adhesives called "structural adhesives," which also includes polyurethane, acrylic, cyanoacrylate and others. Epoxies are formulated as liquid reactive polymers that undergo a chemical reaction when mixed and then cure to form a solid plastic material. Once the two parts are mixed in their specified ratio, they begin the curing process and offer a limited working time where the adhesive can be applied and the two surfaces positioned as needed. This work life lasts anywhere from a few minutes to several hours. These structural adhesives provide high shear and peel strengths, depending on the formula and better heat and chemical resistance than other common adhesives. In general, epoxy adhesives have the highest overall strength and offer the best performance and most resistance to high temperatures, solvents and outdoor weathering.
Epoxy adhesives are widely used in building and home construction; aircraft and automobile manufacturing; bicycle, boat, golf clubs, ski and snowboard assembly as well as a host of home use and other applications. They are used virtually anywhere high-strength bonds are needed along with resistance to environmental conditions. These adhesives are popular for their ease of use, mechanical strength and chemical resistance. Formulations can be created to make epoxies flexible or rigid, transparent or opaque, quick setting or slow setting. The versatility with which epoxy adhesives can be formulated helps meet almost any requirement for bonding wood, metal, glass, stone and various plastics.
Features:
- Formulated to create rigid bonds for reliable adhesion
- Offers tough, strong bonds through high shear strength
- Presents high viscosity to deliver controlled flow and accurate application
- Extended work-life allows extra time for adjustment and positioning to achieve ideal results
- Suitable for a wide variety of metals, woods and some plastics
Manufacturer Part Number | 7000046340 |
Adhesive Type | Epoxy |
Color Family | Green |
Container Size (Inch) | 1.0 Quart |
Container Size (mm) | 0.95 Liter |
Flame Retardant | UL94 HB |
Full Cure Time | 7 Days @ 72 F (22 C) |
Hardness | 80-85 Shore D |
Indoor/Outdoor | Both |
Open Time | 60 min @ 72 °F (22 °C) |
Physical Form | Paste |
Product Color | Green |
Product Form | Kit |
Product Number | 1838 |
Product Type | Epoxy Adhesive |
Set Time | 8 hr |
Shear Strength | 3000.0 psi |
Specific Gravity | 1.15 |
Storage Temperature | 72 F (22 C) |
Storage Temperature (Celsius) | 22℃ |
Substrate | Smooth |
Substrate 1 | Metal |
Substrate 2 | Wood & Hardboard |
Viscosity | Non-sag |
Viscosity Range (cps) at Room Temperature | 400,000 |
Volume (Inch) | 1.0 qt |
Volume (mm) | 950.0 mL |
Application | Bonding , Hard Disk Drive Component Assembly |
