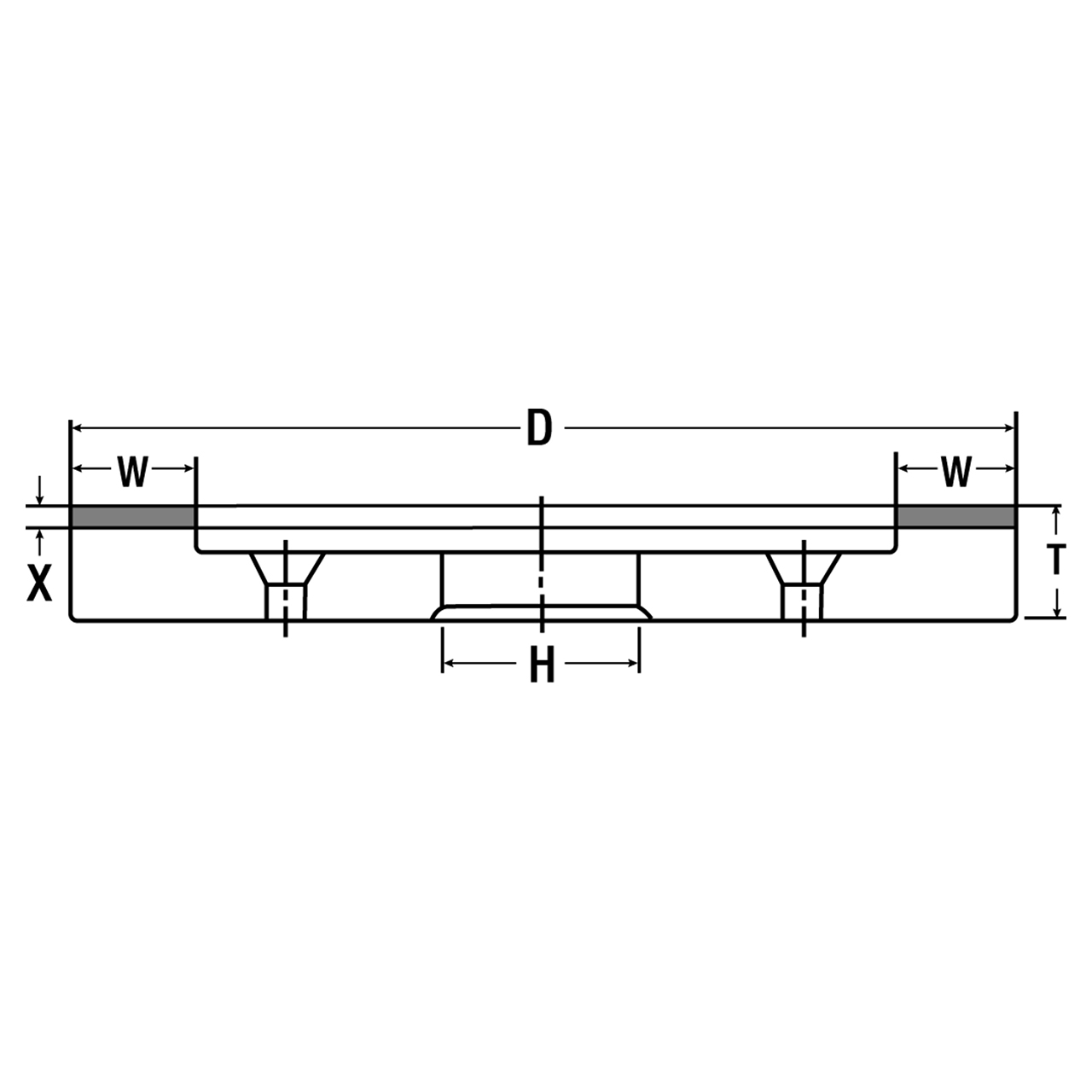

3M 7000118561 | 1.250" Center Hole Diameter x 6.000" Overall Diameter x 0.750" Thickness x 662BK Wheel Type 6A2C Resin Bond Diamond Wheel

3M diamond resin wheel 662BK is used in the production and sharpening of carbide cutting tools. This general purpose wheel is designed to give you the best form retention with a low concentration of abrasive grains to provide a careful and precise cut when used with water based lubricants.

• 3M resin bonded diamond wheels are designed for high performance grinding on carbide. The 3M diamond resin wheel 662BK line is specifically designed for the production and sharpening of cutting tools, including end work, gashing and cutting primary and secondary relief edges. Primary relief involves removing material directly behind the cutting edge to enhance chip clearance. For secondary relief, a slight bevel is ground next to the primary relief. End work grinds a small relief angle on the tip of the tool, while gashing adds a slot along the cutting face to allow for chip flow. Each of these processes require the highest level of quality that 3M diamond resin wheel 662BK provides.

• These superabrasive wheels also use a resin bonding which are specially designed to resist thermal and chemical deterioration, which can occur during high speed grinding. The form holding R rated bond is ideal for applications where maintaining geometry is critical These wheels are designed for use with water based lubricants.

• 3M provides a broad portfolio of superabrasive wheels used for your round tool relief and clearance angle applications. They feature a variety of metal cores, including aluminum, steel, composite and copper, and can be cut with custom arbor holes to fit customer specifications. From short runs and re-sharpening to "lights-out" and long production runs, 3M has the wheel design to meet your needs.

Features:

• Diamond abrasive capable of cutting or shaping cemented carbide, tungsten carbide, and ceramic materials
• Durable resin bond resists deterioration from heat, extending the life of the abrasive wheel
• Designed to provide high form retention for precise cutting
• Various wheel shape and sizes are available for cut-off, gashing, primary and secondary relief and end work
• Arbor holes are made to customer specifications
