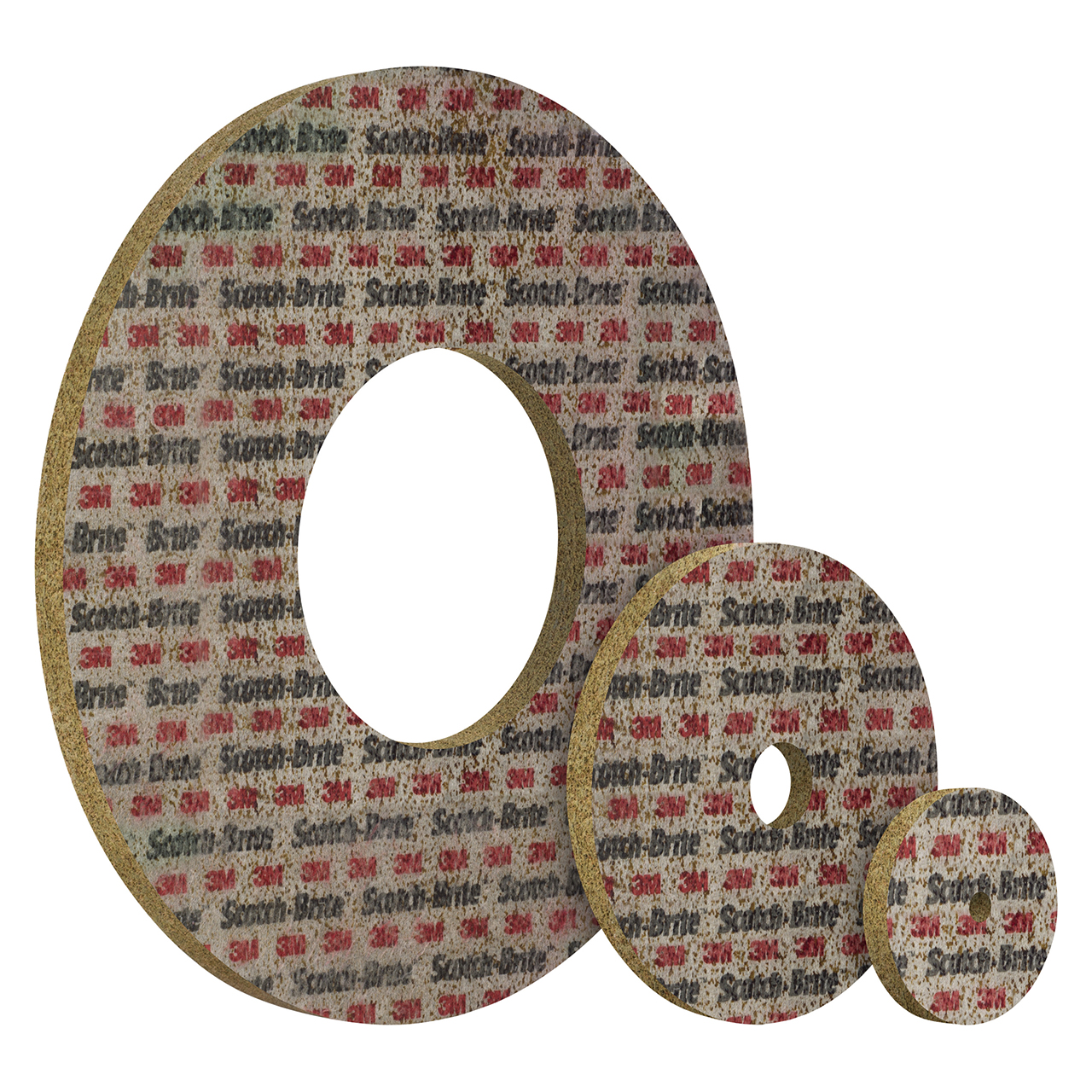

3M 7010292687 | 12.000" Diameter x 0.750" Thickness Cutter Grinding Wheel

$2,748.08
Ships:
From Manufacturer
interval quantity:
1
Ships:
From Manufacturer
SKU:
45040999
UPC:
48011650357
Weight:
2.37 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Scotch-Brite Diamond Wheel, 645DC is a unique surface conditioning wheel containing diamond mineral for removal and pre-polishing of extra-hard materials such as carbide thermal spray and ceramics.

Made to Handle Hard-to-Grind Materials
  • Scotch-Brite Diamond Wheel, 645DC provides significant process improvements in the grinding and finishing of thermal spray and other hard-to-grind substrates. And it's not only tough – its diamond mineral abrasive provides a consistently fine, burr-free finish throughout the life of the wheel.
Discover the Scotch-Brite Advantage
  • Nonwoven technology makes Scotch-Brite abrasives unique. Abrasive mineral is interspersed on synthetic fibers using resin-creating an open web construction. Spaces between the fibers permit excess material to escape, so the mineral does not become worn down by debris. It keeps the mineral cutting sharper longer, enhancing cut performance and increasing abrasive service life. The spring-like nature of the fibers works well on contours and responds to subtleties on the surface. Its responsive design effectively removes unwanted burrs, soils and contaminants without ruining the base material, so you get a consistent and uniform finish-part after part.
Typical Applications
  • Composites
  • Carbon fiber
  • Thermal spray
  • Hard-to-grind surfaces

Features:

  • Provides a consistently fine, burr-free finish
  • Removes and finishes thermal spray parts in one step with Ra in the 12-16 range

Product Specifications
Manufacturer Part Number7010292687
Center Hole Diameter (Inch)5.0"
Center Hole Diameter (mm)127.0mm
Overall Diameter (Inch)12.0"
Overall Diameter (mm)304.8mm
Overall Thickness (Inch)0.75"
Overall Thickness (mm)19.05mm
Overall Width (Inch)0.75"
Overall Width (mm)19.05mm
Maximum Speed2200.0 RPM
Abrasive MaterialDiamond
Product FormWheel
Product Number645DC
