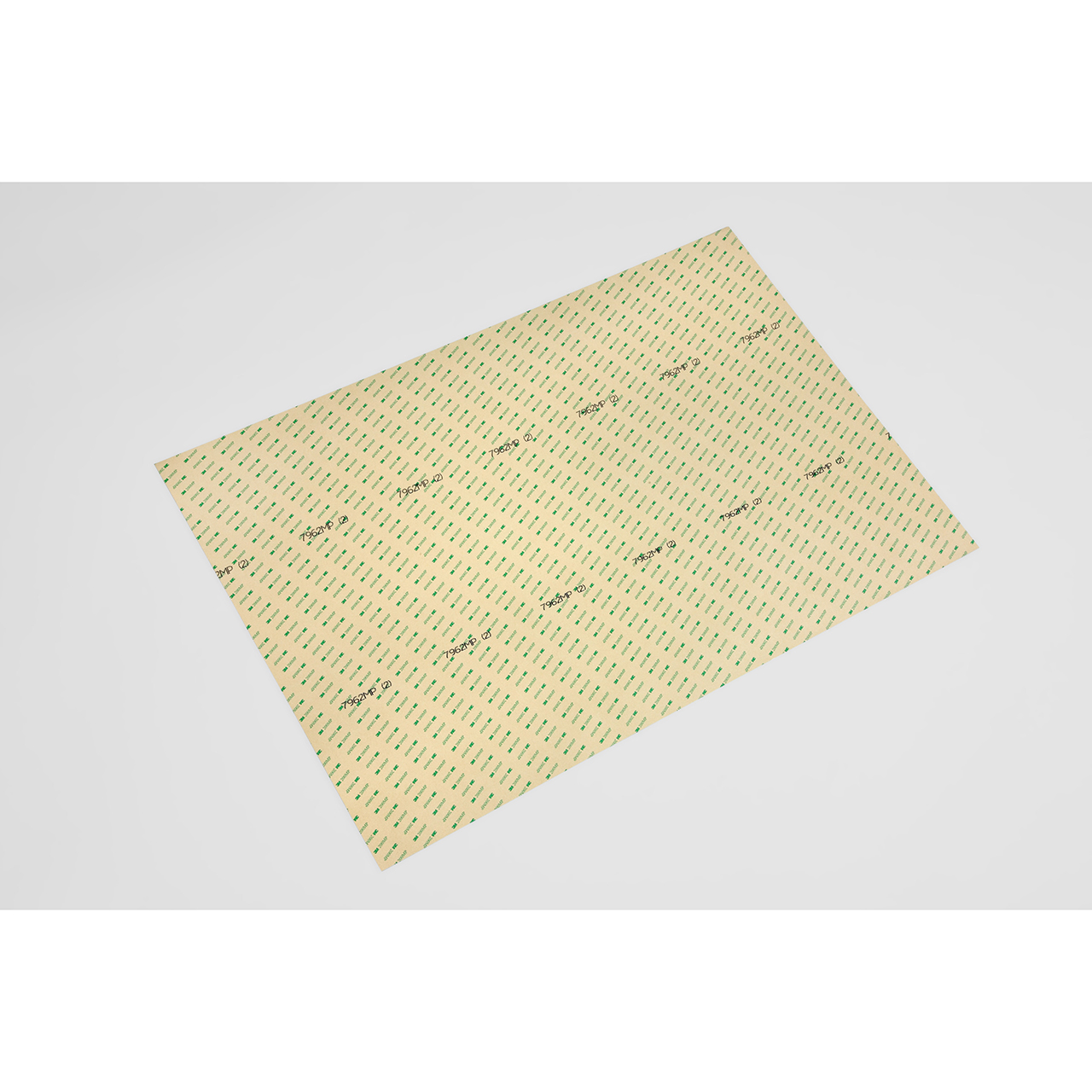

3M 7010295406 | 250 yd x 54.000" Width x 3.1 mil Thickness Splicing & Tabbing Tape

3M double coated tape 9824 is a high initial tack double coated tape on a .5 mil clear polyester film (PET) carrier and with a 3.2 mil white 55-lbs. densified kraft (DK) paper liner. 3M high tack acrylic adhesive 340 provides good adhesion to many metals, plastics and foams.

Engineered with adhesive on both sides of the polyester film carrier, 3M Double Coated Tape 9824 provides good chemical resistance and offers an excellent continuous temperature resistance range from -40°F to 120°F (-40°C to 49°C). The ideal tape application temperature range is 70°F to 100°F (21°C to 38°C). Initial tape application to surfaces at temperatures below 50°F (10°C) is not recommended because the adhesive becomes too firm to adhere readily. Once properly applied, low temperature holding is generally satisfactory.

• General purpose foam and fabric lamination
• General purpose lamination for fabricated parts

3M Double Coated Tape 9824 features 3M Adhesive 340 on both the face and back sides-a medium-firm acrylic adhesive that provides high initial adhesion to a wide variety of surfaces, including high surface energy plastics. A clear polyester film carrier between the adhesive layers adds dimensional stability for easier handling during slitting and die-cutting.

In general, double coated tape is composed of a paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that is removed at the time of application. These tapes can be applied by hand or with a dispenser. Double coated tape dispensers are in a variety of configurations ranging from manual to fully automatic. Applications for double coated tape are found in electronics, automotive, aerospace, general industrial, and fabrication markets.

Double coated tapes offer a multitude of advantages over mechanical fasteners or liquid glues, including an even regular bond without gaps, reduced risk of corrosion, fast application, more flexible product design, improved appearance and they are frequently more economically efficient.

• Medium tack to high surface energy materials such as foam and other substrates
• 0.5 mil clear PET carrier adds dimensional stability
• Good temperature, chemical and humidity resistance
• Caliper-controlled 55# hard liner for consistent base in rotary printing and die cutting of labels
• Good shear and bonding characteristics
