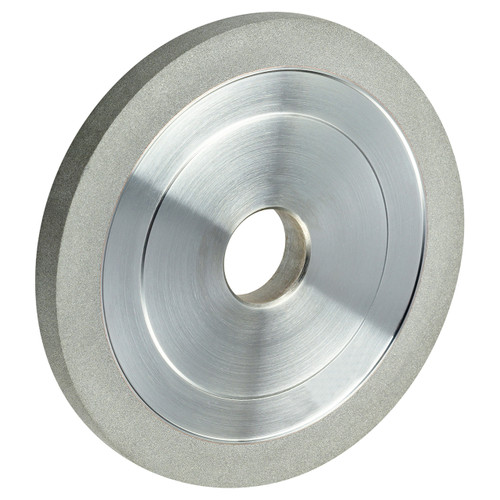

3M 7010493574 | 1.969" Center Hole Diameter x 9.843" Overall Diameter x 644BI Wheel Type 2A2T Resin Bond Diamond Wheel

The 3M diamond resin wheel 644BI is a general purpose wheel designed for the production and re-sharpening of tungsten carbide tipped saw blades. This wheel offers high material removal rates and good form retention.

• Resin bonded diamond wheels are designed for high performance when grinding on materials such as tungsten carbide. The 3M diamond resin wheel 644BI line is specifically designed for the production and re-sharpening of tungsten carbide tipped saw blades. This application requires the highest level of quality which the 3M diamond resin wheel 644BI provides.

• These superabrasive wheels also use a resin bonding which are specially designed to resist thermal and chemical deterioration, which can occur during high speed grinding. This O hardness rated bond delivers high material removal rates with good form retention when grinding materials such as tungsten carbide. Water-based coolant is required for this wheel.

• 3M provides a broad portfolio of superabrasive wheels that cover the full range grinding applications on hard to grind materials. These wheels are available in a variety of sizes, shapes, core materials, and arbor holes custom bore to fit customer specifications. From short runs and re-sharpening to "lights-out" and long production runs, 3M has the wheel design to meet your needs.

Features:

• Diamond abrasive capable of removing stock or grinding forms on tungsten carbide, cemented carbide and ceramic work pieces
• Durable resin bond resists deterioration from heat, extending the life of the abrasive wheel
• Designed for applications where higher stock removal is required without sacrificing form retention
• Various wheel shapes and sizes available with arbor holes are made to customer specifications
• Designed for use with a water-based coolant
