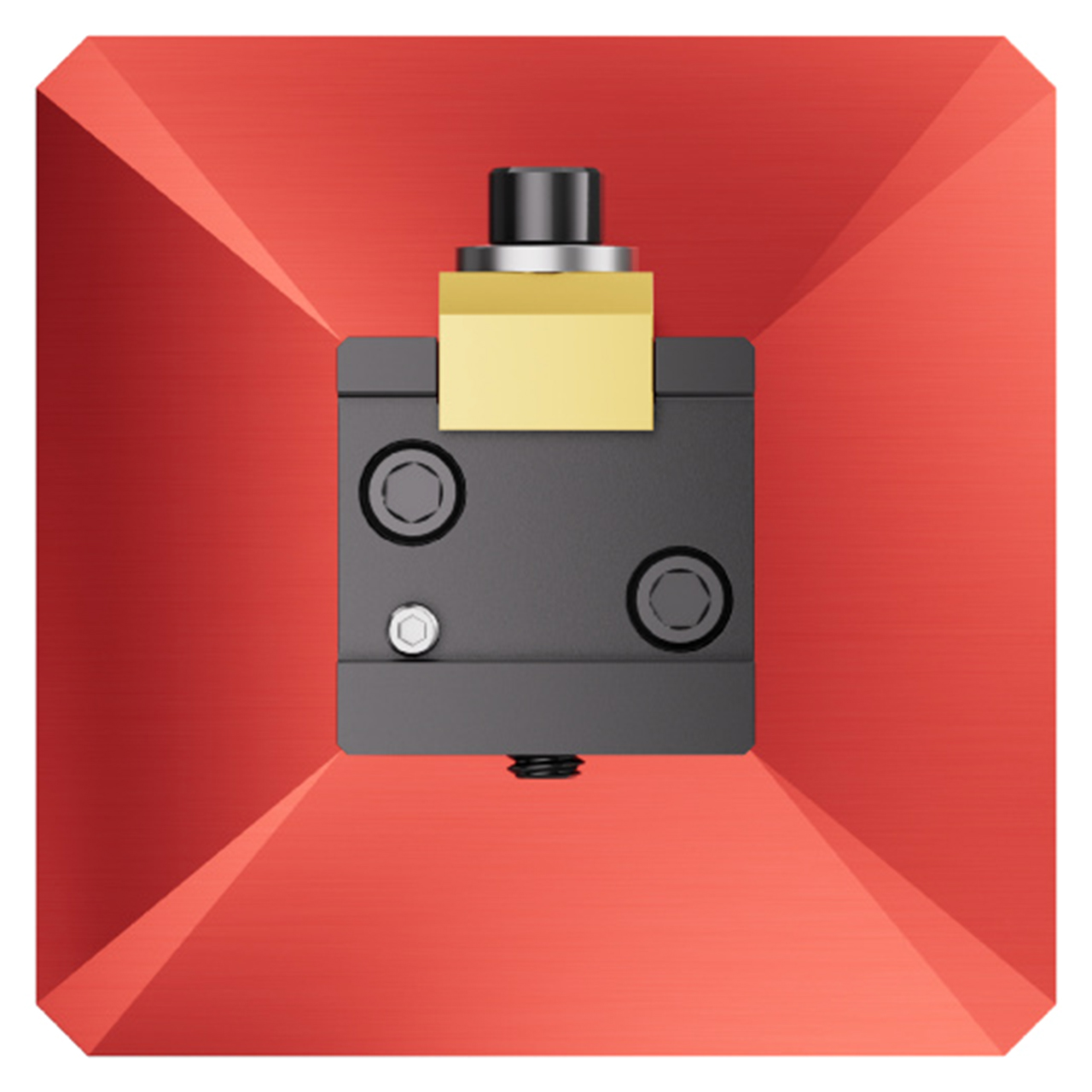

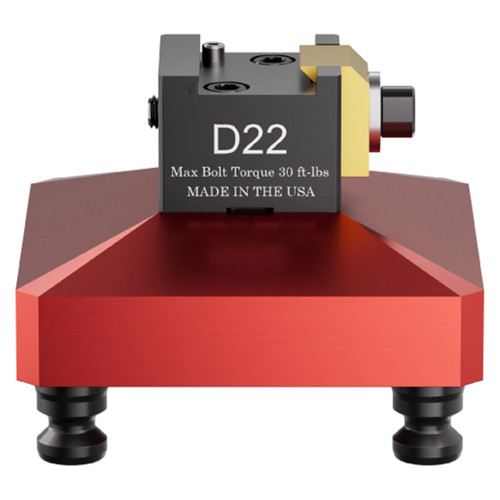

Introducing our versatile and high-performance 96mm line of Workholding Fixtures, designed to meet the demands of precision machining. Whether youre a seasoned professional or just starting your journey in CNC machining, these fixtures are engineered to elevate your productivity, accuracy, and efficiency to new heights. The A96-D22 is the largest dovetail fixture in the 5th Axis workholding line. The A96-D22 features a piston-style clamp for superior gripping force and a low-profile design that optimizes tool clearance.
| Manufacturer Part Number | A96-D22 |
| Product Type | Dovetail Top Tooling |
Overview
Time = Money
Reduce setup times by 80-95%.
Swap Vises & Fixtures Quickly.
A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.
High Accuracy
Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003? (8 microns)
Standardize Your Setups.
Stop building custom adapters and subplates for every new job that comes into the shop.
Job changeover becomes simple and repeatable with the RockLock system, saving you time and money.
Simplify Programming.
Established work offsets help speed up programming time when adjusting for different jobs and top tooling.
Easy Integration.
Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.
