Introducing our versatile and high-performance 96mm line of Workholding Fixtures, designed to meet the demands of precision machining. Whether youre a seasoned professional or just starting your journey in CNC machining, these fixtures are engineered to elevate your productivity, accuracy, and efficiency to new heights. The A96-DM50 is the largest dovetail fixture in the 5th Axis workholding line. The A96-DM50 features a piston-style clamp for superior gripping force and a low-profile design that optimizes tool clearance.
Features:
| Manufacturer Part Number | A96-DM50 |
| Size (mm) | 75.00 x 161.10 x 25.00mm |
| Product Type | Dovetail Top Tooling |

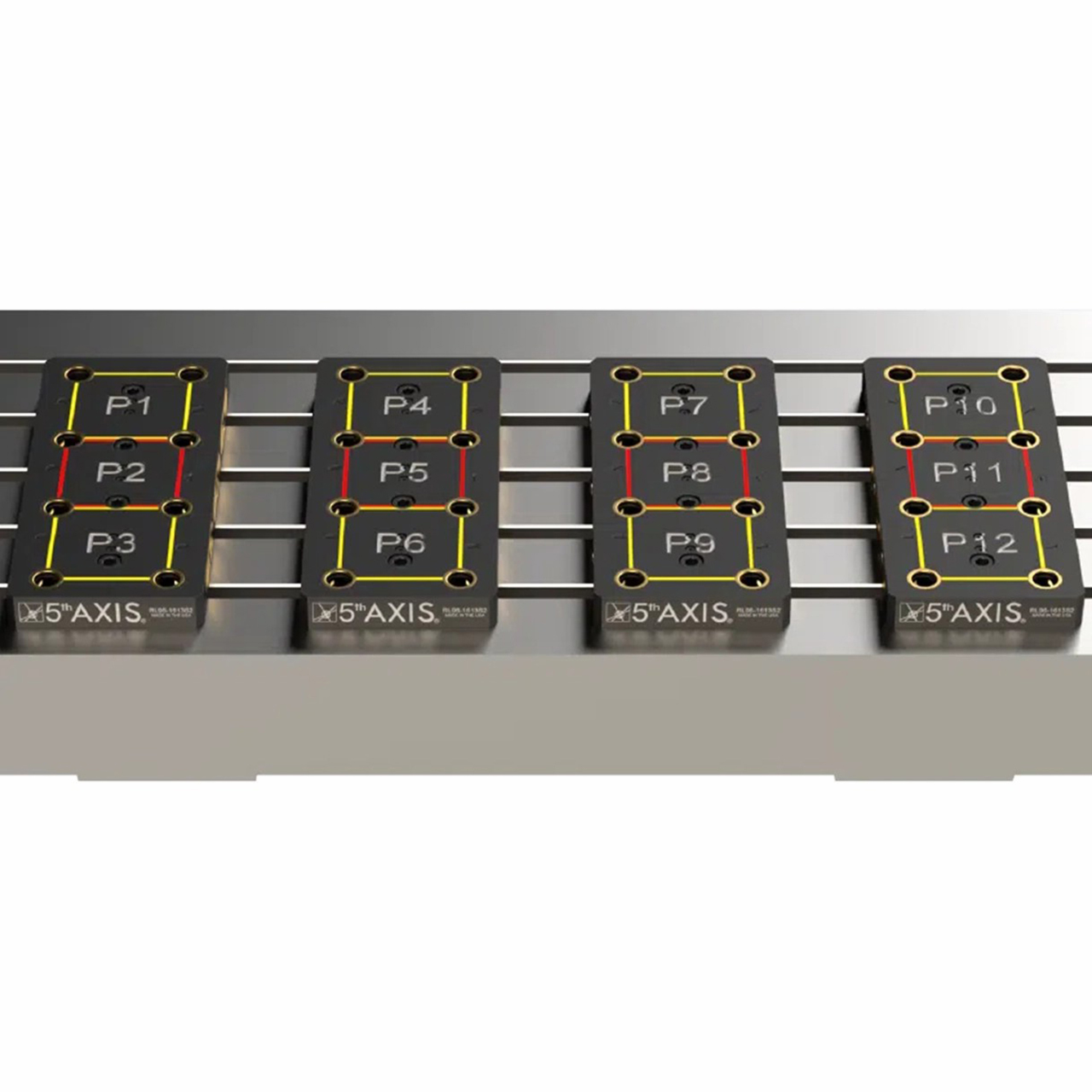

A standard mounting pattern allows for easy movement of vises, fixtures, and tooling from machine to machine no setup time.
Patented free float design ensures equal force on all 4 pull studs guaranteeing repeatability of less than .0003? (8 microns)
Stop building custom adapters and subplates for every new job that comes into the shop.
Job changeover becomes simple and repeatable with the RockLock system, saving you time and money.
Established work offsets help speed up programming time when adjusting for different jobs and top tooling.

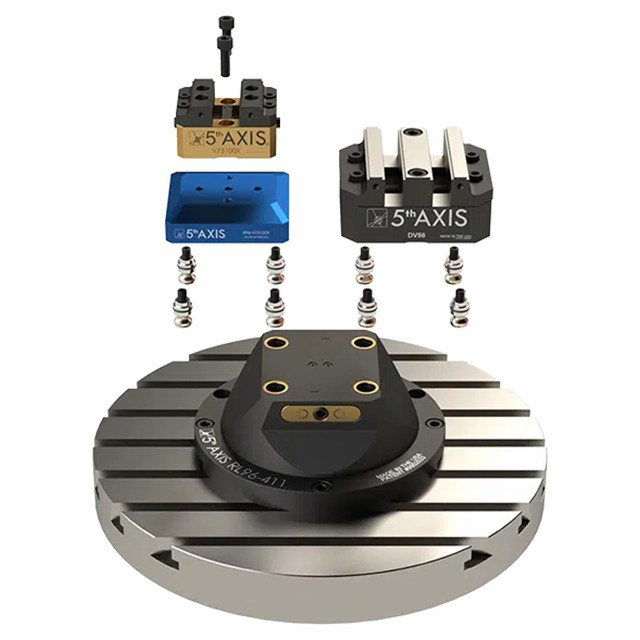

Pull studs are easily integrated into existing fixtures and subplates. Standard 52mm and 96mm spacing allow for compatability with competitive systems.
