Unlock the full potential ofCNC machining operations with our cutting-edge 5th Axis CNC Dovetail Fixtures. Designed to revolutionizeprecision machining processes, this fixture is engineered to meet the highest standards of accuracy and efficiency.
Key Features:
Unrivaled Precision:
Our CNC Dovetail Fixture is meticulously crafted to ensure exceptional precision, allowing you to achieve tight tolerances and exacting specifications in your workpieces.
Versatile Compatibility:
This fixture is compatible with a wide range of CNC machines, making it a versatile addition to your machining setup.
Unrivaled Accessibility:
Achieve complex, multi-sided machining tasks with ease, reducing setup time and increasing production efficiency.Dovetail Design:
The unique dovetail design offers superior workholding strength, stability, and rigidity. Say goodbye to vibration and chatter, and enjoy a smooth machining process.
Quick Setup:
Designed with the operator in mind, our CNC Dovetail Fixture ensures a rapid and hassle-free setup. Spend less time on preparation and more time on machining.
Durable Construction:
Crafted from high-quality materials, this fixture is built to withstand the rigors of the manufacturing environment. Its a long-term investment that will continue to deliver exceptional performance.
Features:
- Unlock the full potential of your CNC machining operations with 5th Axis CNC Dovetail Fixtures.
- Exceptional precision for tight tolerances and exacting specifications.
- Versatile compatibility with a wide range of CNC machines.
- Access complex, multi-sided machining tasks with ease, reducing setup time.
- Unique dovetail design for superior workholding strength, stability, and rigidity.
- Quick and hassle-free setup, reducing preparation time.
- Durable construction using high-quality materials for long-term performance.

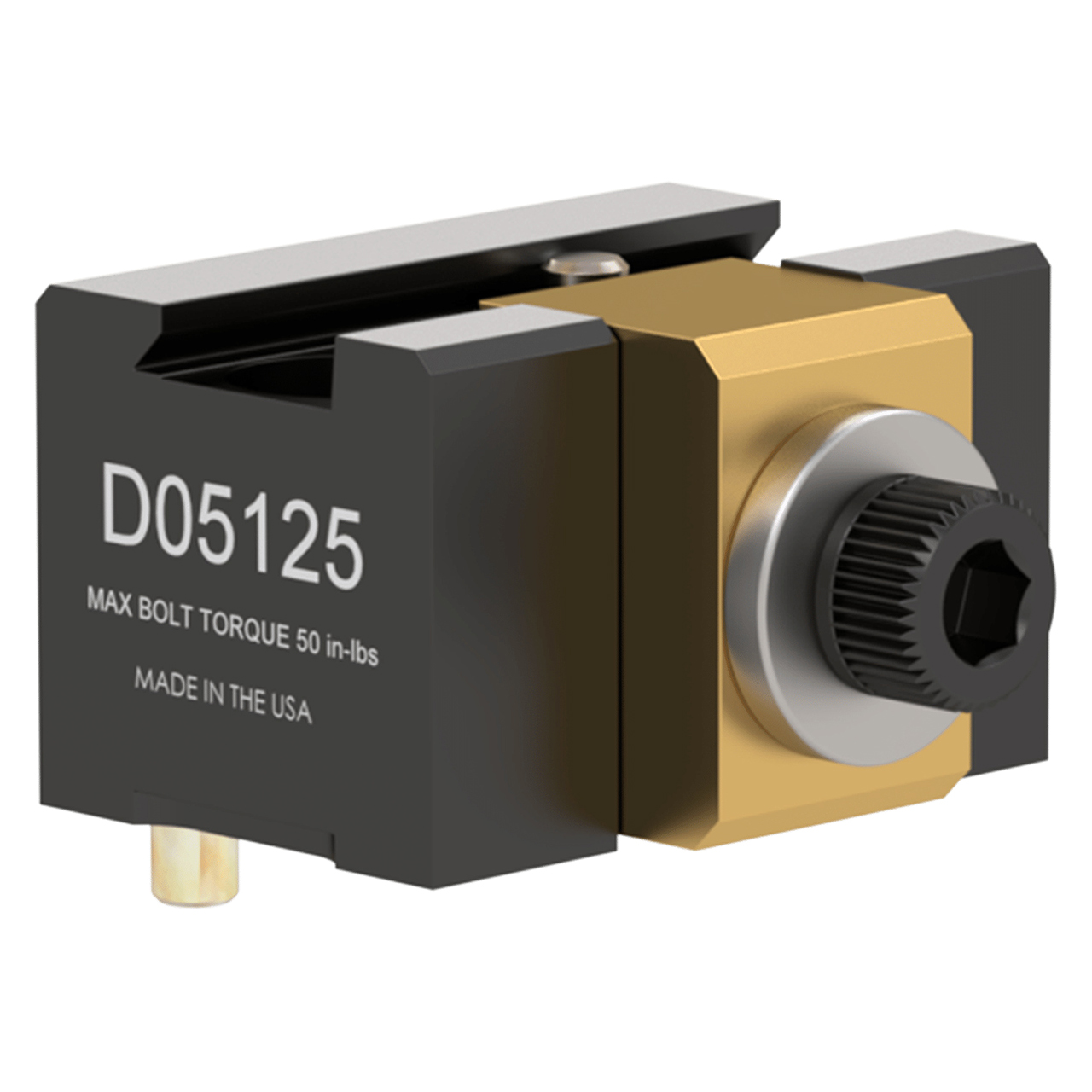

| Manufacturer Part Number | D05125 |
| Size (Decimal Inch) | 1.230" x 1.310" x 0.750" |
| Crate Dimensions (Inch) | 3" x 2" x 2" |
| Dovetail Depth (Inch) | 0.800" |
| Material | Steel |
| Series | 4100 |
| Product Type | Small Dovetail Cutter |
Overview
Locating / Stop Pin For Accuracy
A precision locating pin ensures the stock is centered in the fixture while ensuring the stock cannot be forced out of the fixture during machining.
The locating pin also provides high repeatability for in process inspection / movement from machine to machine.
Mechanically Locked
All 5th Axis products utilize a 45 degree dovetail angle.
Dovetails provide equal in and down force, meaning your parts are held more stable than any other workholding method.
Minimal torque is required. If you need compact workholding with high repeatability and ultimate precision, then you need to use dovetail workholding.
Efficient Material Use
Dovetailing reduces the amount of material you need to purchase via traditional clamping methods.
Not only do you waste less of your stock, but dovetailing also reduces part deformation due to excessive torque; dovetails spread clamping force more evenly through the part and use down-force instead of lateral pressure.
