Features
- Weight: 5.1 lbs

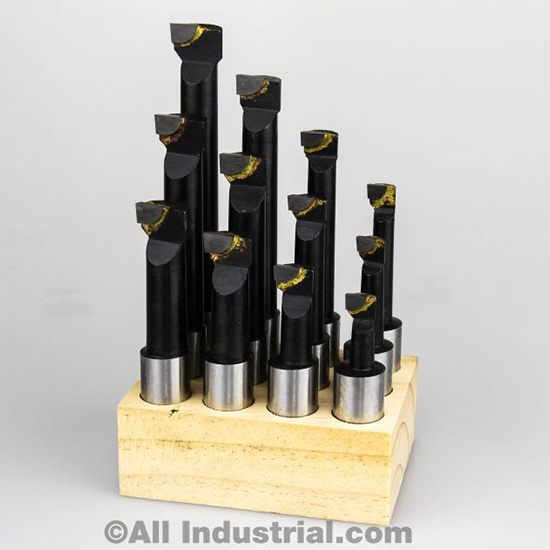

- 12 Piece boring bar set features C-6 carbide for use in harder materials but also works great in aluminum and other soft metals
- All shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
- Shank Diameter- 3/4"
- Minimum Boring Range: 7/16" - 13/16"
- Overall Length: 3-1/8" to 6-1/2"
- Boring Depth Range: 1-1/8" to 4-1/2"
- Contains (3) pcs. 7/16" minimum bore (1 ea. 1-1/8" bore depth x 3-1/8" overall, 1 ea. 1-11/16" x 3-11/16", & 1 ea. 2-1/4" x 4-1/4")
- Contains (3) pcs. 9/16" minimum bore (1 ea. 1-1/2" bore depth x 3-1/2" overall, 1 ea. 2-1/4" x 4-1/4", & 1 ea. 3" x 5")
- Contains (3) pcs. 11/16" minimum bore (1 ea. 1-7/8" bore depth x 3-7/8" overall, 1 ea. 2-13/16" x 4-13/16", & 1 ea. 3-3/4" x 5-3/4")
- Contains (3) pcs. 13/16" minimum bore (1 ea. 2-1/4" bore depth x 4-1/4" overall, 1 ea. 3-1/8" x 5-3/8", & 1 ea. 4-1/2" x 6-1/2")
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
All Industrial
Shank Diameter (Inch):
3/4"
Minimum Bore Diameter - Small Bar (Inch):
7/16"
Maximum Bore Depth - Small Bar (Inch):
4-1/2"
Minimum Overall Length (Inch):
3-1/8"
Maximum Overall Length (Inch):
6-1/2"
Material:
Carbide
Ships:
From Partner Facility
IsDiscontinued:
