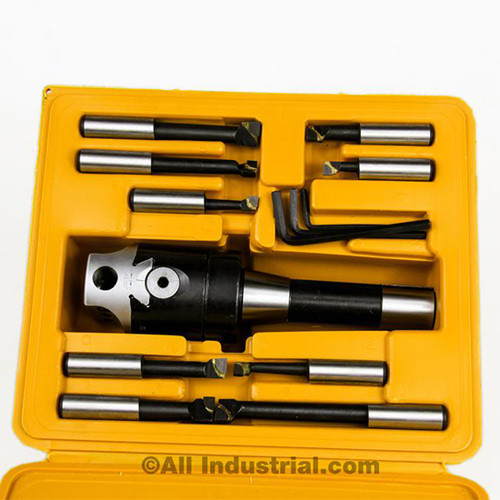

All Industrial 48106 | 9pc 3/4" to 3" Boring Depth Range 1/2" Shank Carbide Tipped Boring Bar Set with R8 Shank & 2" Boring Head

$64.34
Brand:
All Industrial
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
25000875
Weight:
4.50 LBS
Shipping:
Calculated at Checkout
Ships:
Same Business Day if Ordered by 12:30PM PT

Features

  • Weight: 4.5 lbs
  • Kit Includes 2" boring head, R8 shank, & 9 piece C6 carbide tipped boring bar set
  • 2" Boring head features: 0.002" graduation, 5/8" max offset, up to 1/2" tool capacity, bar holder moves freely & smoothly, rigid design for precise hole size accuracy. Designed for excellent performance in many applications!
  • R8 shank features: 7/8"-20,made of high grade tool steel, hardened & ground, 7/16"-20 internal thread drawbar end
  • 1/2" Shank boring bar dimensions are below. All boring bar shanks are held to 0.0000-0.0005" from the nominal diameter and made of special heat treated alloy steel
  • Shank Diameter- 1/2"
  • Minimum Boring Range: 5/16" - 9/16"
  • Overall Length: 2-1/4" to 4-1/2"
  • Boring Depth Range: 3/4" to 3"
  • Contains (3) pcs. 5/16" minimum bore (1 ea. 3/4" bore depth x 2-1/4" overall, 1 ea. 1-1/8" x 2-5/8", & 1 ea. 1-1/2" x 3")
  • Contains (3) pcs. 7/16" minimum bore (1 ea. 1-1/8" bore depth x 2-5/8" overall, 1 ea. 1-11/16" x 3-3/16", & 1 ea. 2-1/4" x 3-3/4")
  • Contains (3) pcs. 9/16" minimum bore (1 ea. 1-1/2" bore depth x 3" overall, 1 ea. 2-1/4" x 3-3/4", & 1 ea. 3" x 4-1/2")
