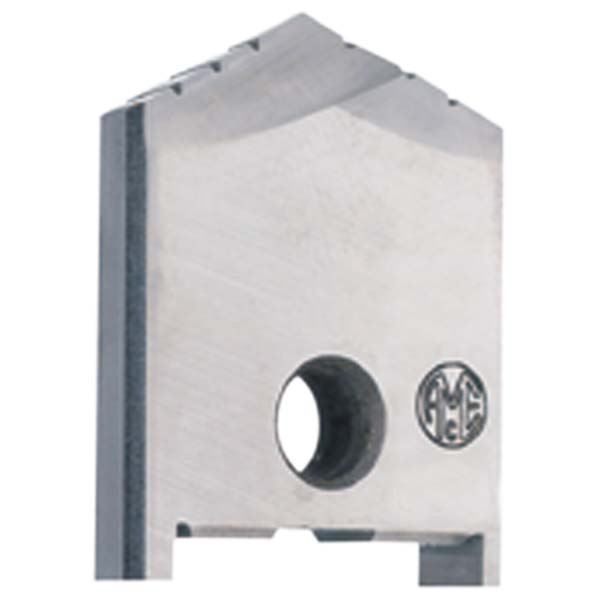

Name: Allied Machine and Engineering 10264-0313 | 3-13/32" Diameter x 1/2" Thickness Uncoated F Series Spade Drill Insert
Brand: Allied Machine and Engineering
SKU: 10004066
Price: 272.0 USD
Availability: InStock

Allied Machine and Engineering 10264-0313 | 3-13/32" Diameter x 1/2" Thickness Uncoated F Series Spade Drill Insert

$272.00

Brand:

Allied Machine and Engineering

Diameter (Inch):

3-13/32"

Diameter (Decimal Inch):

3.4063"

Diameter (mm):

86.52mm

Series Code/Seat Size:

Material:

High-Speed Steel

Finish/Coating:

Uncoated

Thickness (Inch):

1/2"

Included Angle:

130 Degree

interval quantity:

SKU:

10004066

UPC:

Weight:

1.17 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout

Features
Reviews
Other Details

Universal style spade drills and universal holders allow end-users a larger diameter range. The diameter size for the universal spade drill ranges from 1" to 8-1/2". Tool life is improved when coated with TiN, TiCN, and TiAlN.

Features:

Universal inserts fit into universal holders and accommodate a wide range of diameters
3 Geometries: 130 Degree for standard drilling, 90 Degree spot/chamfer, and flat bottom

Product Specifications

# MFG	10264-0313
Diameter (Inch)	3-13/32"
Diameter (Decimal Inch)	3.4063"
Diameter (mm)	86.52mm
Locating Area (Inch)	2-5/8"
Thickness (Inch)	1/2"
Tool Reference Length (Inch)	3-1/8"
Series	F
Coating	Uncoated
Grade	High Speed Steel
