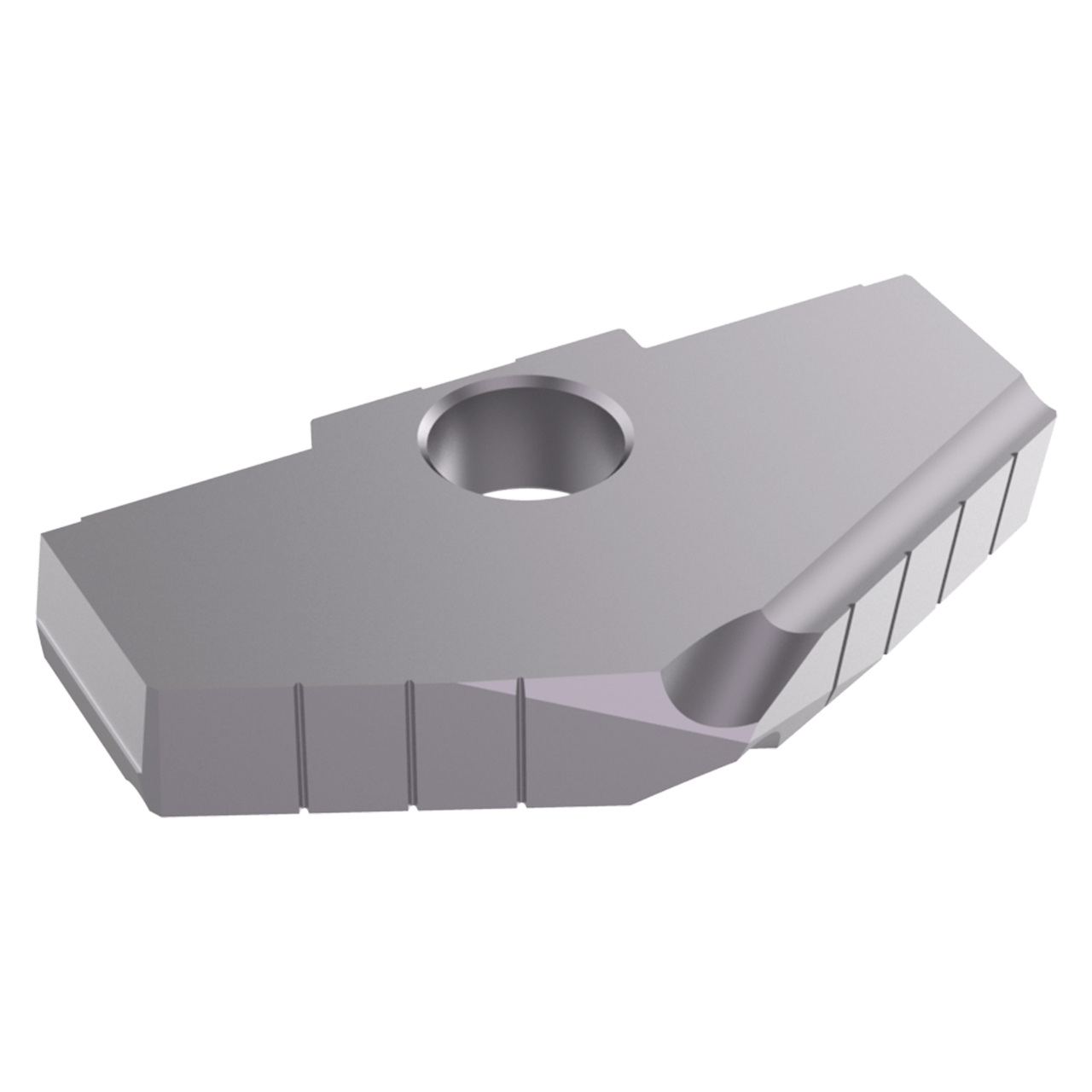

High Performance Spade Drills (HP) were designed for end-users who had Universal Style holders, but were looking for improved performance. HP spade drills fit into the Universal holders, but offer the high-tech geometry and performance benefits.
Features:
- Single piece design in A-C series eliminates the need for adaptors ensuring maximum tool performance in these smaller sizes
- Unique tool geometry reduces thrust up to 30% when compared to uncoated Universal style spade drills
Product Specifications
| # MFG | 1026A-0318 |
| Diameter (Decimal Inch) | 3.5625" |
| Diameter Fractional Equivalent | 3-9/16" |
| Diameter (mm) | 90.49mm |
| Grade | High Speed Steel |
| Locating Area (Inch) | 2-5/8" |
| Reference Length with Adapter (Inch) | 2-17/32" |
| Series | F |
| Thickness (Inch) | 1/2" |
| Tool Reference Length (Inch) | 1-13/16" |
| Coating | TiAlN |
